线束设备系列/HARNESS EQUIPMENT SERIES

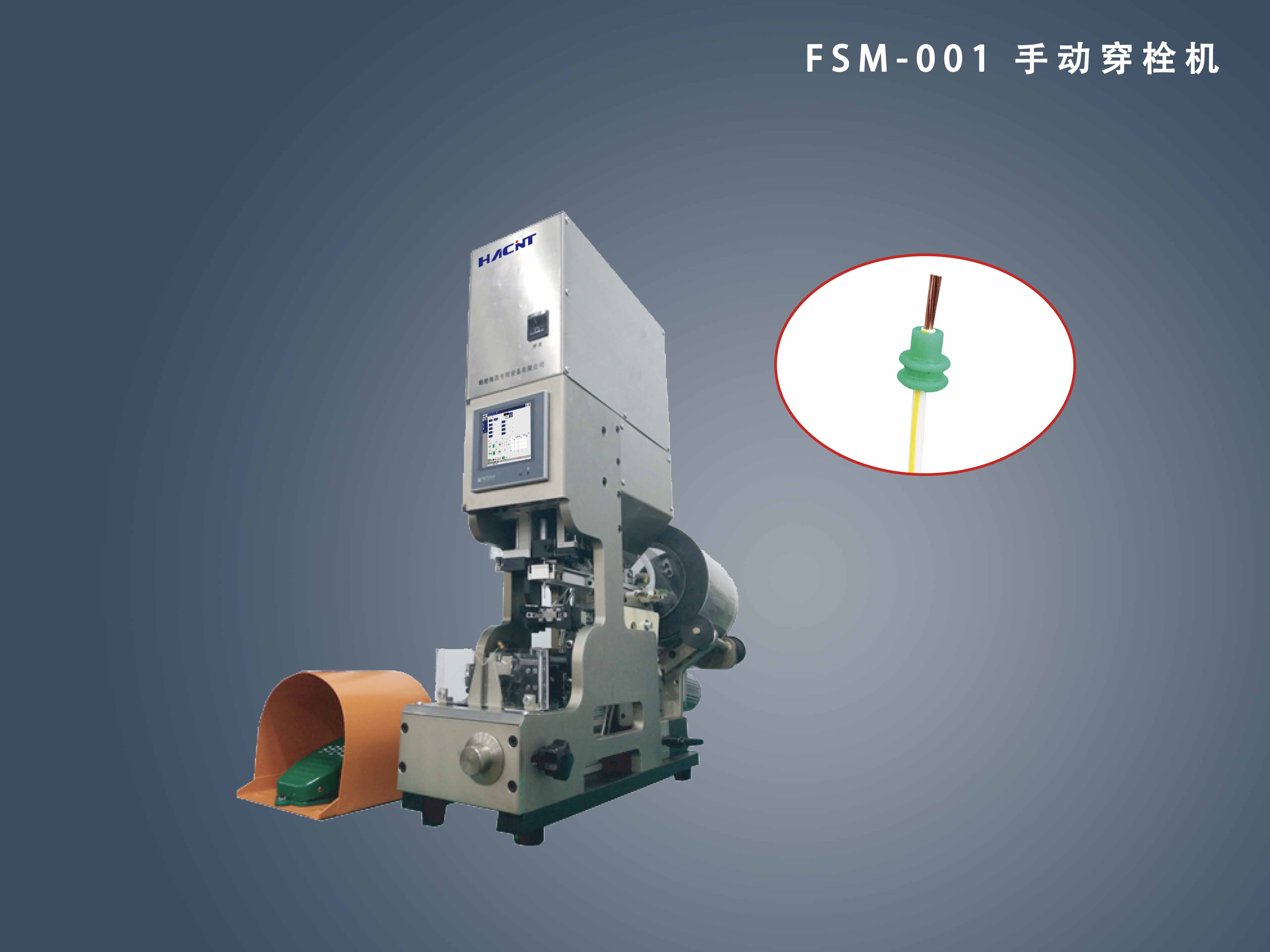

FSM-001 SEAL LOADING MACHINE

Product characteristics: ● Operation interface: Visualized operation for single step, reset,timing, I/0 detection and setting the parameters; ● Automatic feed:Roller rotation for automatic feed,quiet and energy saving; ● Easy operation:There are two trigger modes, pedal or timing, to meet different customer needs; ● Rail features:Seal rail can be changed separately, which is quick and saves the cost.

Product information:Product videos, instructions, pictures

Product overview Product characteristics technical parameter Related products

FSM-001 is the semi-automatic machine for seal loading manually, inserting the seals to the stripped wire ends. Different from traditional processing, FSM-001 achieves automatic feeding and loading, which not only increases efficiency and the quality, but also reduce workingr intensity.

● Operation interface: Visualized operation for single step, reset,timing, I/0 detection and setting the parameters;
● Automatic feed:Roller rotation for automatic feed,quiet and energy saving;
● Easy operation:There are two trigger modes, pedal or timing, to meet different customer needs;
● Rail features:Seal rail can be changed separately, which is quick and saves the cost.


Seal Size

9×10(diameter*length)mm  (max)

Inner diameter(Seal)

0.6-3.0mm

Seal Length

15mm(max )

Outer diameter(Wire)

1-3.6mm

Speed

60pcs/min  (max )

Power Supply

AC220/50HZ

Air Supply

0.5~0.6MPa

Power

100W

Weight

60kg

Dimension

640mm (L) × 220mmW× 640mmH
