HBQ-802E Automatic Crimping Machine
HBQ-802E automatic crimping machine is a classic type independently developed by Hacint for the wire harness industry. It features a four-station platform, and in addition to the crimping station, it can be equipped with an a sealing workstation or visual inspection workstation. The equipment is driven by a high-precision servo system and equipped with a high-rigidity swing arm structure, enabling good product processing and being easy to maintenance, it makes the entry intoautomatic wire harness processing more economical. 查看详情
HBQ-802E Automatic Crimping Machine
HBQ-804E Automatic Crimping Machine
HBQ-804E automatic crimping machine is a brand-new type independently developed by Hacint for the wire harness industry. It features a six-station flexible platform, and in addition to the crimping station, it can be equipped with workstations with different functions such as sealing workstations, visual inspection workstations, and pressure module workstations can be freely combined. The equipment is driven by a servo system with new technology and is equipped with a highly integrated and lightweight swing - arm structure, a specially designed dual - channel cutter, a multi - function button panel and other new designs, making the equipment powerful and suitable for a wide range of processes. 查看详情
HBQ-804E Automatic Crimping Machine
HBQ-804H Automatic Crimping Machine
HBQ-804H Automatic Crimping Machine is a type independently developed by Hacint for the wire harness industry, specifically targeting large square wire diameters. It features a six-station platform, in addition to the crimping station,it can be equipped with sealing workstation and visual inspection workstation. The equipment adopts a specially reinforced swing arm structure, equipped with an active wire feeding machine and an 8-ton crimping machine, capable of processing wire harnesses ranging from 6 - 16 square millimeters. Based on this platform, customized types for crimping loose terminals with heat-shrinkable tubes can be developed. 查看详情
HBQ-804H Automatic Crimping Machine

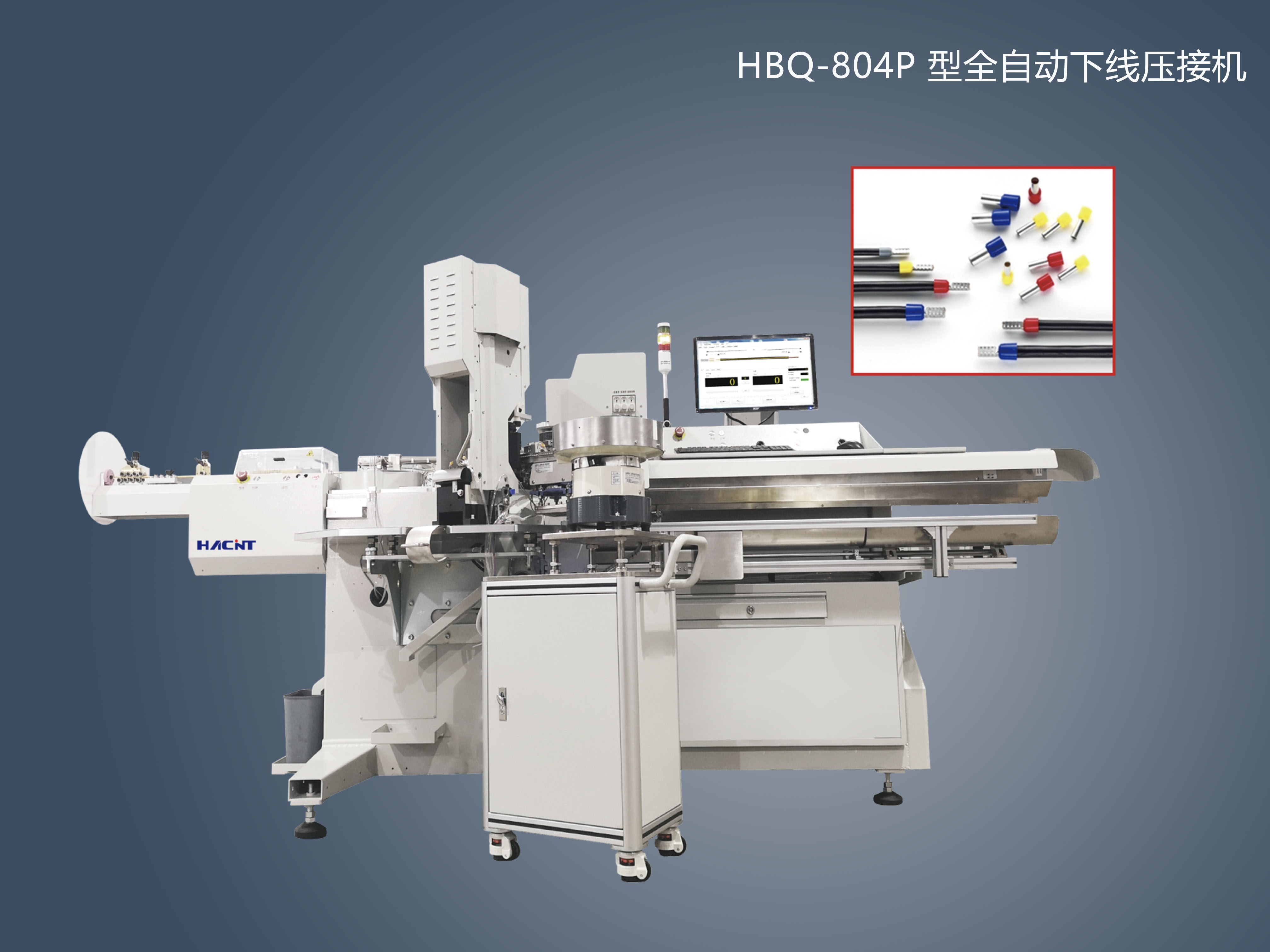

HBQ-804P Automatic Crimping Machine
HBQ-804P Automatic Crimping Machine is a customized model developed by Hacint based on HBQ-804E platform for the automatic processing of tubular terminals. The equipment adopts an independent terminal feeding module, is equipped with a specially designed terminal receiving module, and is highly integrated with the crimping applicator. It realizes the flexible connection between the feeding module and the main machine of the equipment, making the equipment easy to change models and stable in function. 查看详情
HBQ-804P Automatic Crimping Machine
HBQ-G501 Automatic Tin Dipping Machine
HBQ-G501 automatic tin dipping machine (second generation) is a wire harness processing equipment that automatically crimps one end of the terminal and dips the other end with tin. Its functions include crimping and seal loading (optional), terminal CCD appearance inspection (optional), wire twisting, tin dipping, etc. The overall layout adopts a modular design, featuring high efficiency and convenient debugging. The equipment is equipped with terminal pressure inspection, terminal CCD appearance inspection (optional), NG cut-off fool-proofing (optional), micrometer (optional), and tensile tester (optional) to prevent defective products from being released. The equipment can be connected to the MES of factory, key components of the entire machine are sourced from either imported or well-known domestic brands to ensure equipment reliability. HBQ-G501 automatic tin dipping machine (second generation), complete set includes: 1 set of main machine, 1 set of wire feeder, and wire retractor (customized according to customer’s needs). The main machine can process wires with a length ranging from 30 to 9,900 millimeters and cross-sectional areas ranging from 0.04 to 2 square millimeters. The main machine can achieve a maximum efficiency of 3600 pieces per hour, and the wire feeder can accommodate up to 400 rolls (drums) of wire as input material. It equipped with a pre-feeding wire function to prevent the situation where the lengths of wires are inconsistent. 查看详情
HBQ-G501 Automatic Tin Dipping Machine
HBQ-G502 Automatic Crimping Machine
HBQ-G502 automatic crimping machine (second generation) is a wire harness processing machine for fully automatic double - head terminal crimping. Its functions include terminal crimping, seal loading (optional), terminal CCD appearance inspection (optional), housing loading (optional), etc. The overall layout of the machine adopts a modular design, which is highly efficient and easy to debug. This machine is equipped with terminal pressure detection, terminal CCD appearance inspection (optional), and an NG cutting module (optional) to prevent defective products from flowing out. The key components of the whole machine are imported or from well - known domestic brands to ensure the reliability of the machine. HBQ-G502 automatic crimping machine includes: 1 set of main machine, 1 set of wire feeder, and a wire winder (customized according to customer’s needs). The main machine can process wires with a length of 35~9999mm and a cross - sectional area of 0.04~2mm². The maximum efficiency of the main machine can reach 3400~3600pcs/h (double - head crimping). The wire feeder machine can hold up to 400 rolls of wire (on drums) as incoming materials and is equipped with a pre - wire feeding function to prevent wire length variations. A tension meter and a digital micrometer are optional. 查看详情
HBQ-G502 Automatic Crimping Machine
