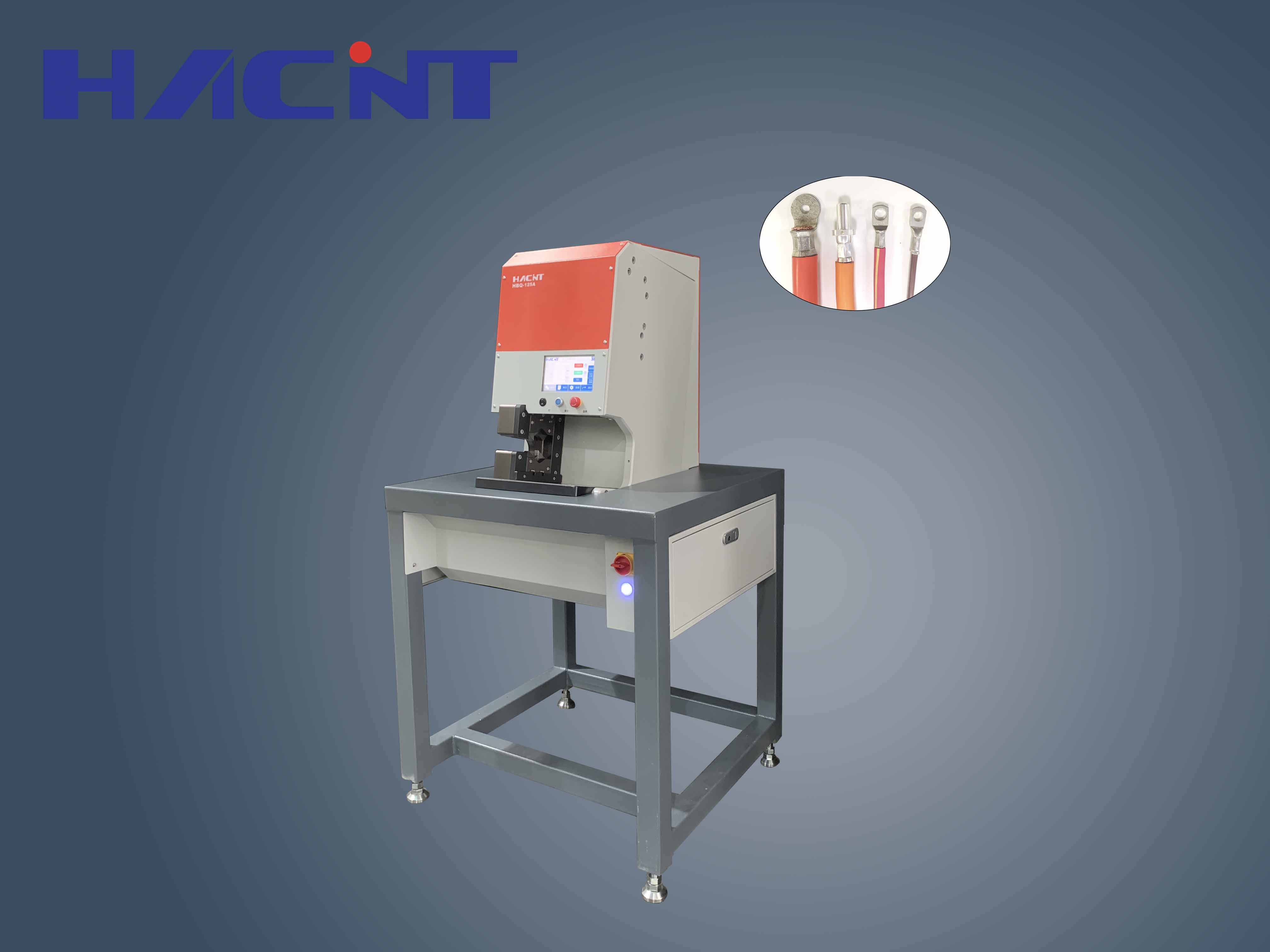

HBQ-125A Hexagonal Crimping Machine

产品特点: ● High efficiency and cost reduction: No need to change applicators for crimping different wire diameters, saving applicators-making costs; ● Stable and durable: With a brand-new mechanism design, the crimping force remains stable and does not decay at different closing heights, meeting the crimping requirements of larger - square - section cables; ● High universality: Capable of crimping tubular terminals and shielding rings; ● Precise adjustment: Independent motor adjusts the crimping height and automatically compensates for height; ● Multiple configurations available: Optional manual and automatic positioning devices to meet different customer's needs; ● Easy operation: Touch screen control, setting parameters, jogging operation, and accessing process recipes are more convenient; ● Customization support: The crimping length can be customized according to requirements.

产品资料:产品视频、说明书、图片

产品概述 产品特性 技术参数 相关产品

HBQ-125A hexagonal crimping machine is a applicators-integrated crimping machine used for crimping tubular terminals and shielding rings.The equipment is used for the production of wire harnesses such as those for electric vehicles, charging piles, and battery cables, achieving the convenience of no applicators replacement. It can adapt to crimping requirements for different wire diameters.

● High efficiency and cost reduction: No need to change applicators for crimping different wire diameters, saving applicators-making costs;

● Stable and durable: With a brand-new mechanism design, the crimping force remains stable and does not decay at different closing heights, meeting the crimping requirements of larger - square - section cables;

● High universality: Capable of crimping tubular terminals and shielding rings;

● Precise adjustment: Independent motor adjusts the crimping height and automatically compensates for height;

● Multiple configurations available: Optional manual and automatic positioning devices to meet different customer's needs;

● Easy operation: Touch screen control, setting parameters, jogging operation, and accessing process recipes are more convenient;

● Customization support: The crimping length can be customized according to requirements.


Type

HBQ-125A

Power Supply

220V/50Hz

Power

2.0kW

Crimping Length

12mm(Optional)

Crimping Width

3~16mm

Crimping Force

250kN

Wire Diameter Range

6~120m㎡(tubular type / shielding ring )

Terminal Material Thickness

≤2mm

Times of Stroke

20 S.P.M

Overall Dimensions

L800×W800×H1500mm

Weight

450kg
