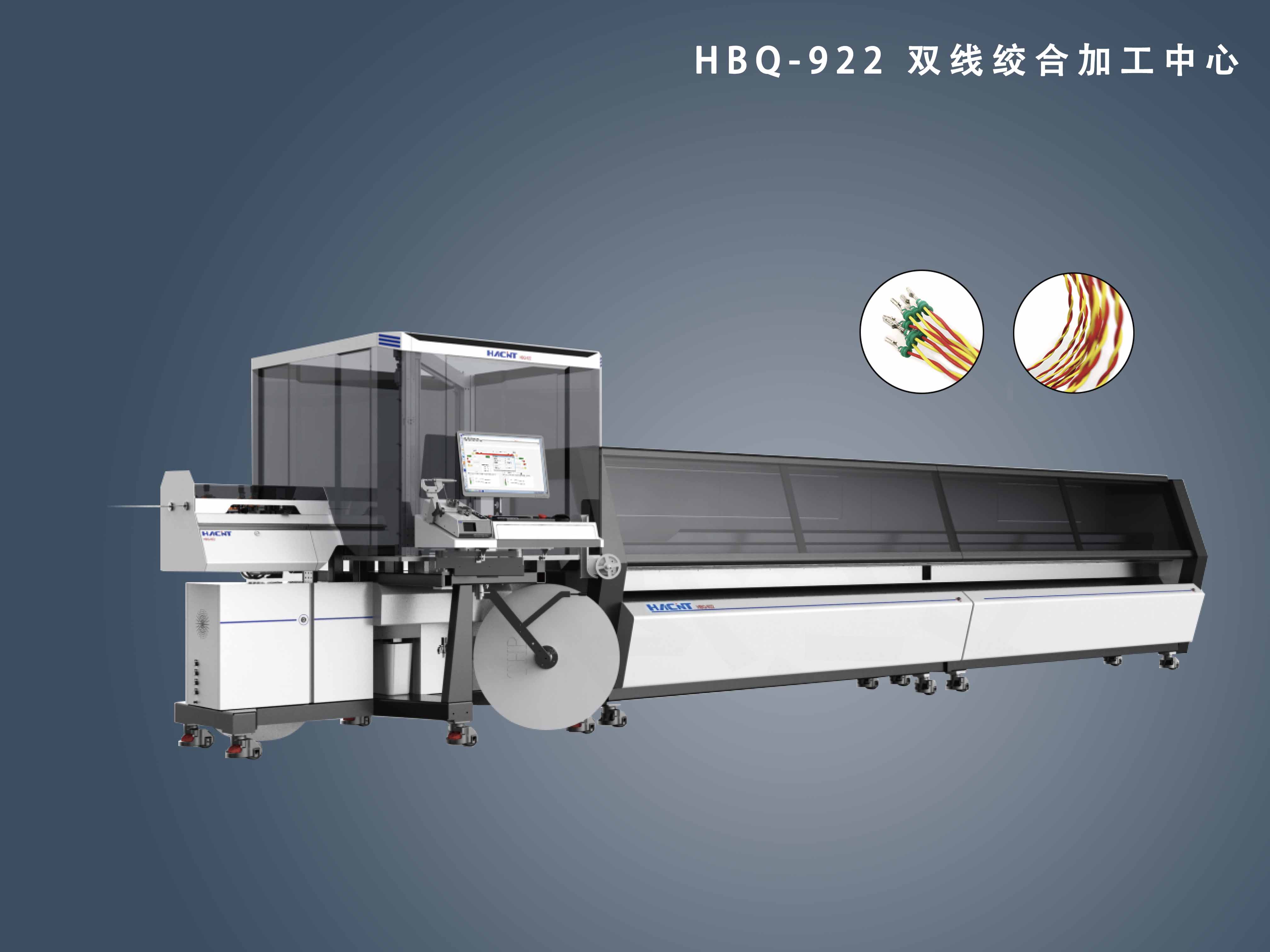

HBQ-922 Double-wire Twisting Center

产品特点： ● Save manpower: This machine integrates five processes into one: offline, crimping, seal loading, twisting, and tape binding; ● Provincial logistics: It saves the material movement between traditional automatic crimping machines and twisting machines; ● High efficiency: The processing efficiency can reach up to 3.6 seconds per wire; ● Fine pitch: The pitch tolerance can be controlled within ±10%; ● High flexibility: It can accommodate both twisting and untwisting wire processing modes.

产品资料：产品视频、说明书、图片

视频

下载

产品概述产品特性技术参数相关产品

HBQ - 922 Double-wire Twisting Center integrates the functions of wire feeding and twisting. enablingautomatic cutting, stripping, seal loading, crimping, twisting and tape binding and so on. This machine can efficiently process twisting wires with a conductor area ranging from 2×0.3mm² to 2×2.5mm².

● Save manpower: This machine integrates five processes into one: offline, crimping, seal loading, twisting, and tape binding;

● Provincial logistics: It saves the material movement between traditional automatic crimping machines and twisting machines;

● High efficiency: The processing efficiency can reach up to 3.6 seconds per wire;

● Fine pitch: The pitch tolerance can be controlled within ±10%;

● High flexibility: It can accommodate both twisting and untwisting wire processing modes.

Type	HBQ-922
Length Range	190~4000mm（standard）
Length Accuracy	±（0.1%L+1.5mm），L refers to the wire length
Wire Diameter Range	0.22~2.5mm²
Stripping Length	0.1~18mm
Opening Length	35~90mm
Uneven Openings Misalignment Length of Twisting Tail	35~120mm
Air Consumption	4.5~10m³/h
Number of Processed Wire Harness	2
Twisting Length	190~4000mm（standard）
Twisting Speed	Refer to the efficiency curve chart for details
Pitch Accuracy	（5~80mm） + 10% (the average value of the sum of the distances of any 10 consecutive sections)
Twisting Number	1
Power Supply	380V/50Hz
Power Supply	0.5~0.7MPa
Power	8000W（Max）
Overall Dimensions	L8300×W2200×H2000mm
Weight	3000kg（standard）
Optional Accessories	FSA-001E Seal loading machine DOS Servo crimping machine Frequency conversion crimping machine Shut height measurement module Terminal Pull Force detection module
