HARNESS EQUIPMENT SERIES

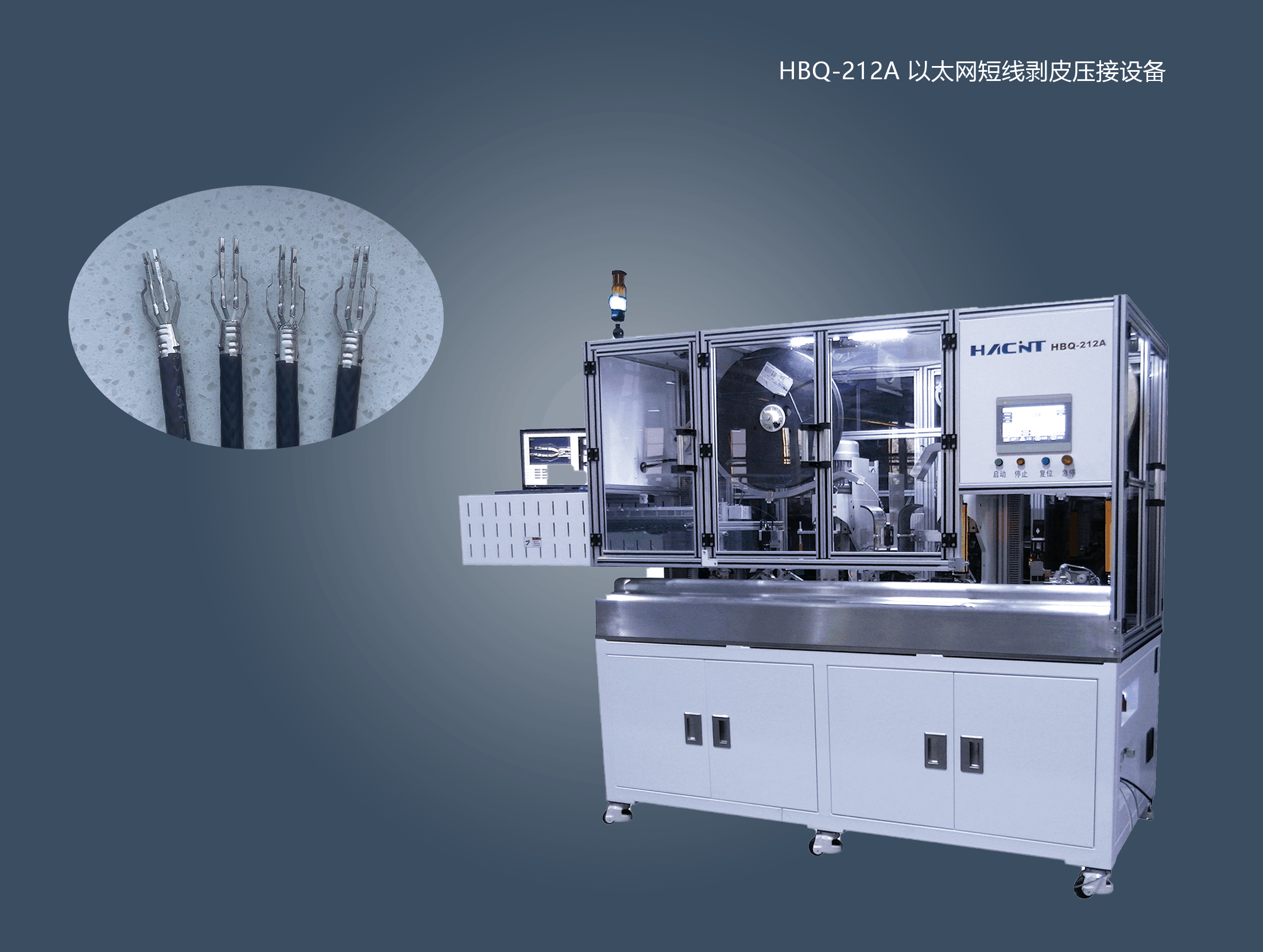

HBQ-212A ETHERNET SHORT WIRE STRIPPING AND CRIMPING MACHINE

产品特点: ● Crimp: Simultaneously achieve the crimp of the core wire and the outer circular ring; ● High integration: Core wire shaping, stripping, crimping, outer ring crimping, and CCD crimping detection; ● High quality: Through CCD inspection, defective products are eliminated; ● High efficiency: Two sets of circulating clamping jaws operate in parallel, enhancing production efficiency; ● Humanization: The stripping length and crimping size are adjusted through software control; when changing products, simply retrieve the corresponding product formula; ● High precision: The adoption of a high-precision positioning mechanism ensures the consistency of length; ● Intelligence: Equipped with an automatic visual inspection device, it can monitor product quality in real-time, automatically alerting and isolating defective products; The friendly PC interface and more intuitive graphics have improved visibility and operability.

产品资料:产品视频、说明书、图片

产品概述 产品特性 技术参数 相关产品

HBQ-212A  can realize automatic stripping and crimping of multi-specification dual-core Ethernet wires, which can automatically complete core wire shaping, core wire stripping, core wire terminal crimping, outer ring crimping, CCD crimping automatic detection and discharging.
Stripping: 3.9 mm extreme stripping length for 8 mm long core wires.
Crimping: simultaneous crimping of core wires and outer rings.

● Crimp: Simultaneously achieve the crimp of the core wire and the outer circular ring;
● High integration: Core wire shaping, stripping, crimping, outer ring crimping, and CCD crimping detection;
● High quality: Through CCD inspection, defective products are eliminated;
● High efficiency: Two sets of circulating clamping jaws operate in parallel, enhancing production efficiency;
● Humanization: The stripping length and crimping size are adjusted through software control; when changing products, simply
retrieve the corresponding product formula;
● High precision: The adoption of a high-precision positioning mechanism ensures the consistency of length;
● Intelligence: Equipped with an automatic visual inspection device, it can monitor product quality in real-time, automatically alerting
and isolating defective products;
The friendly PC interface and more intuitive graphics have improved visibility and operability.

Type
HBQ-212A
Wire Diameter Range
Applicable products Dual core Ethemet(If you need to adapt to other products,pleasecontact us)
0.13~0.35mm²
Overall Dimensions
L2200×W100×H2690mm
Weight
1650kg
Stripping Length
A:0.1~4.0mm
B:8~12mm
