HBQ-G401 TORQUE WORKSTATION

Product characteristics: ●Intelligent Error Proof ①Start up and check to ensure high precision torque value of electric batch; ②If failed to reach the tightening value, the equipment will alarm and self-lock; ③Position alarm, encoder controls screw tightening axes, the corresponding axes will implement screw tightening; ④Quickmark recognition, using barcode scanner quickly identify products, and set torque value. ●Convenient operation ①Equipped with canvas tray, convenient to store big size wire and multi-wire harness; ②Visual software management, quickly identify problem causes. ●Safety Independent start button, idle materials controlled by program. Restart after placing the materials to prevent misoperation.

Product information:Product videos, instructions, pictures

Product overview Product characteristics technical parameter Related products

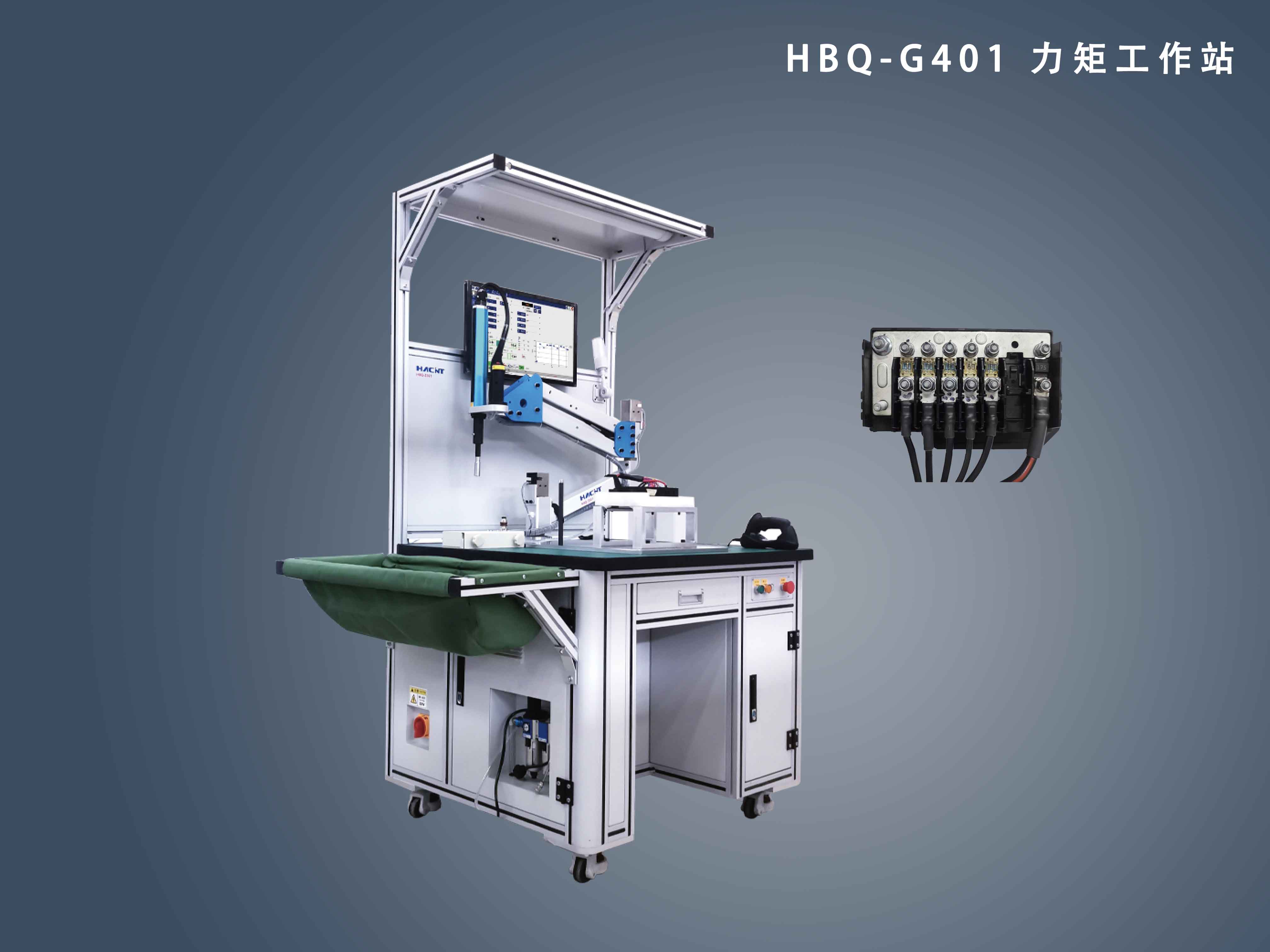

HBQ-G401 is a semi-automatic screw equipment, mainly used for the nut screw. Nut tightening torque values can be traceable and upload in MES system real-time. This equipment has function of screws tighten mistake proofing and screw order mistake proofing, Screw Torque Set, Torsion Check, Quickmark Code, Tightening Torque High/low Alarm, Production Record, Intelligent electric batch CORETEC from Japan, the copyright of host computer program software reserved by Hacint, can greatly meet customer customization needs;
The machine is mainly composed by machine frame, canvas tray, the balance arm, host computer, PLC, displayer. fixture.The fixture can be customized according to customer product appearance.
The equipment has proofing function for mistake and idle material. If screw setting not finished or tighten screw failure, the equipment will automatically hold and alarm, only the authorized personnel can relieve it, This can effectively prevent screw loose or defective materials flow into the next process.

●Intelligent Error Proof
①Start up and check to ensure high precision torque value of electric batch;
②If failed to reach the tightening value, the equipment will alarm and self-lock;
③Position alarm, encoder controls screw tightening axes, the corresponding axes will implement screw tightening;
④Quickmark recognition, using barcode scanner quickly identify products, and set torque value.
●Convenient operation
①Equipped with canvas tray, convenient to store big size wire and multi-wire harness;
②Visual software management, quickly identify problem causes.
●Safety
Independent start button, idle materials controlled by program. Restart after placing the materials to prevent misoperation.


Dimensions:1010x910x1956, (table height ≈ 840 in mm)
Software: PC WIN10 (genuine system), HACINT control software
Electric Screw Driver:  CORETEC
Torque Range: 5-22N-m
Torque Accuracy: ±1.5%
Speed: 540rpm/min
Performance:ntelligent with control software,C-LINK,DEVICENET, ProfibusDP card
Screws: M5 - M12 nut/screw locking
Noise: <60 db (A)
Torque check: Yes
Barcode: Yes
Axes Display: Yes
Port: USB, RS232
Power: 500W
Power Supply: 220V/50Hz
Air Supply: 0.5Mpa - 0.7Mpa
Weight: 113kg
