CVIS100 VISUAL INSPECTION SYSTEM

Product characteristics: Small size, compact structure and reliable performance through image judge on the computer. Clear interface, legible data and easy operation. The parameters are adjustable and can be applied to various terminals by setting the tolerances.

Product information:Product videos, instructions, pictures

Product overview Product characteristics technical parameter Related products

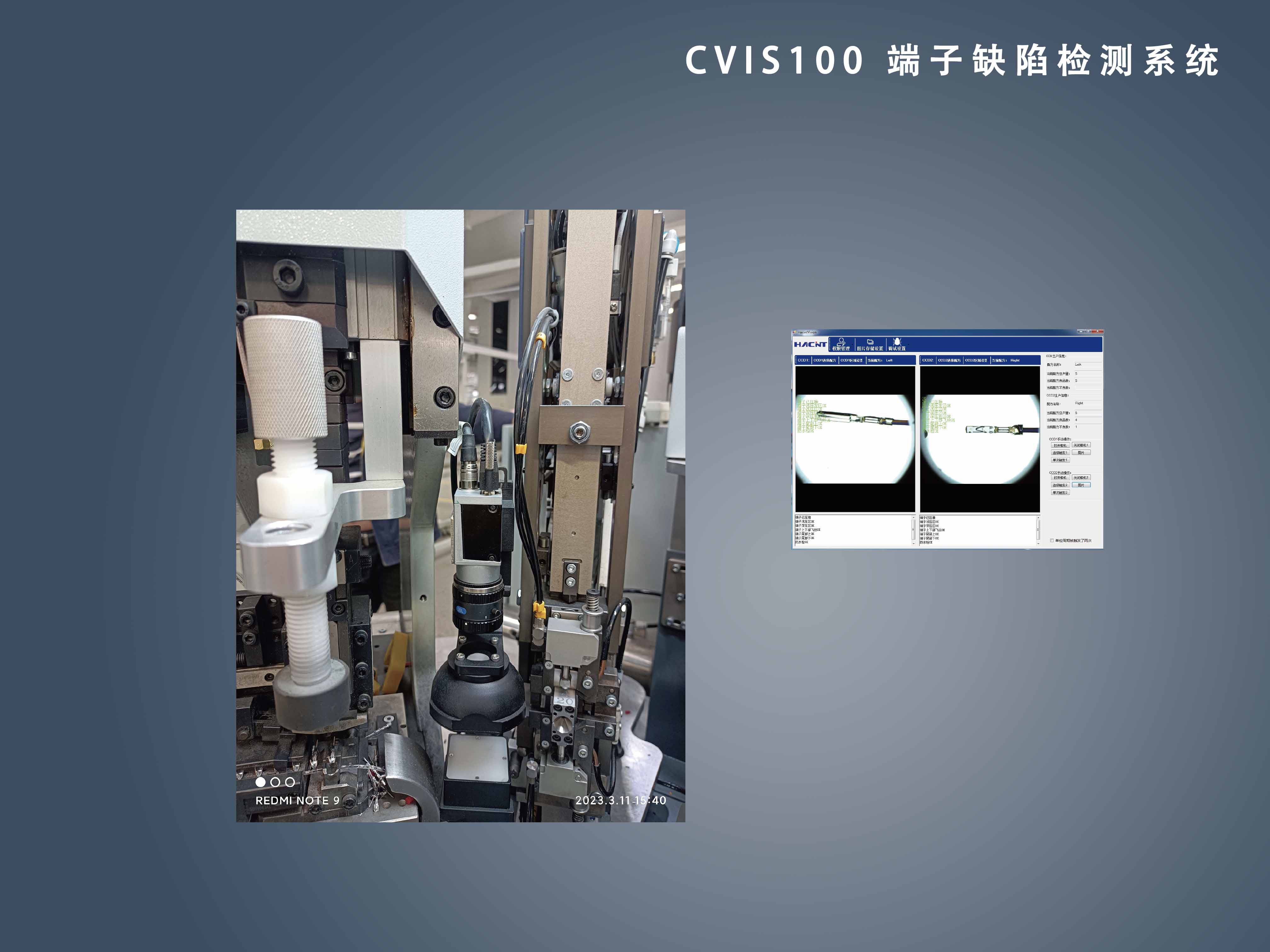

Visual inspection system is an equipment designed to inspect the appearance of defectives of the crimp terminals and it can inspect the defectives which can’t be detected by CFM. The camera will snap the crimped terminals when the swivel arms pass by and then the visual inspection system will detect the defective terminals by image analysis, which will increase the precision of the quality control substantially of the terminals and avoid defectives to the utmost.

● Automated inducting: Automatic and stable snap in production after the light sensation parameters.
● Customized learn: Separate solutions for different terminals by a good learn of the terminals and direct call of the cases saved.
● Collection channel: Separate image collection and judge of both terminal ends without confliction.
● Data processing: Saving good and bad images for tracing back.
● Data communication: Stable communication with production control and instant stop of production once abnormal crimped terminals is found.

Judge time <100ms
Snap speed 1/60000s (17μs)
False positive rate 0.10%
Pixel Color 300,000 pixels
Pass Vel 3m/s
Exposure time <0.02ms
Lighting time 1ms
Save types number unlimited
