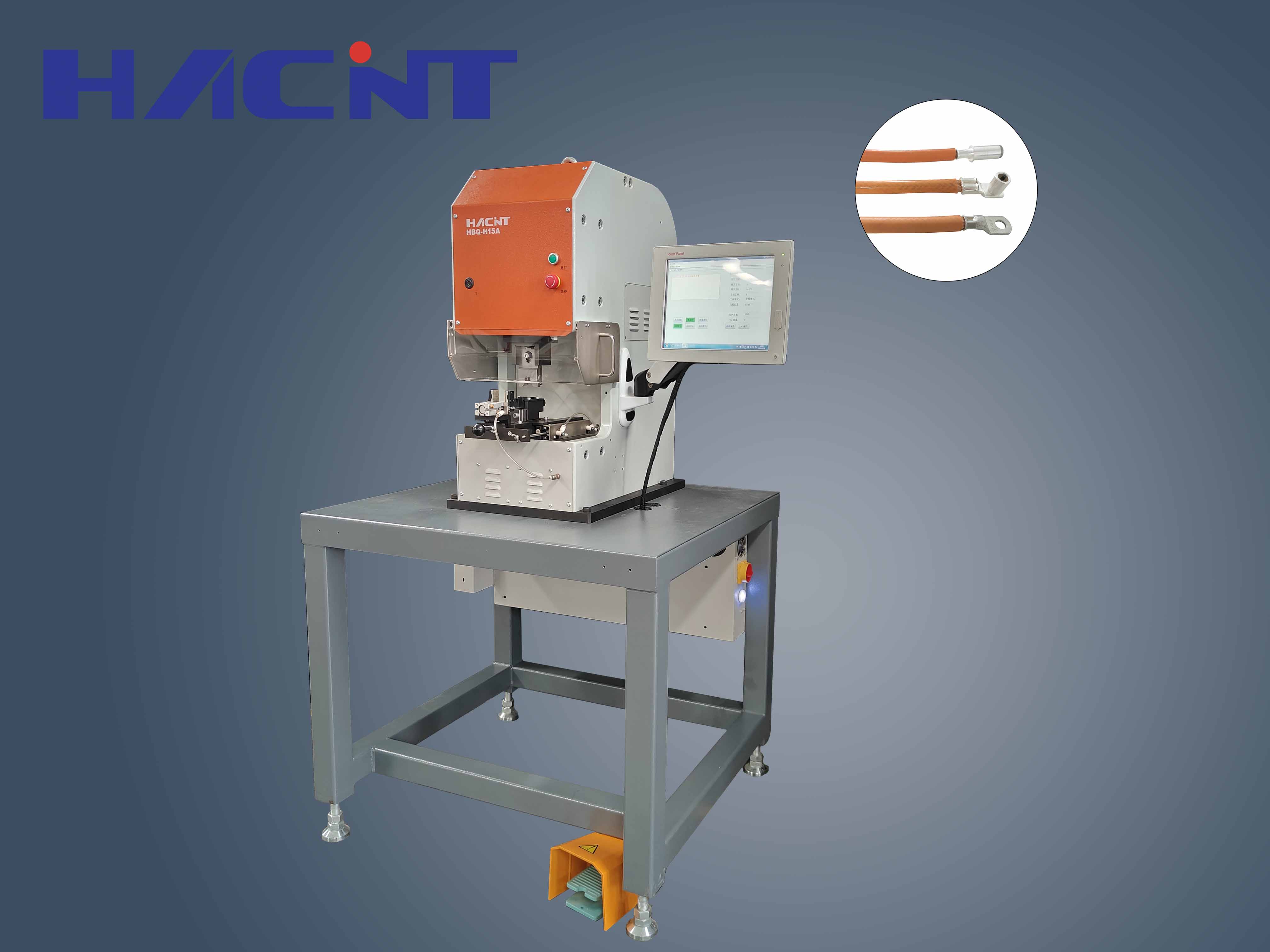

HBQ-H15A Oil Hydraulic Crimping Machine
产品特点: ● High quality: small size, high crimping force, and adjustable crimping start and stop height; ● High efficiency: adjustable stroke, higher efficiency with short stroke; ● Strong compatibility: The crimping wire has a large diameter, allowing it to fit a variety of applicators; ● Safe and convenient: Equipped with a protective cover for enhanced safety; The software is simple and user-friendly, with intuitive and quick operation.
产品资料:产品视频、说明书、图片
HBQ-H15A oil hydraulic crimping machine is a semi - automatic machine specially designed for crimping large - square - section cables. Compared with traditional mechanical crimping machines, it has characteristics such as a small footprint and a large crimping force. It is also equipped with a newly designed applicators mounting base, which can be adapted to various applicators such as CLM and HCA simultaneously, thus having stronger versatility. The crimping height is adjustable, and it is equipped with multiple crimping modes, making its application range wider.
● High quality: small size, high crimping force, and adjustable crimping start and stop height;
● High efficiency: adjustable stroke, higher efficiency with short stroke;
● Strong compatibility: The crimping wire has a large diameter, allowing it to fit a variety of applicators;
● Safe and convenient: Equipped with a protective cover for enhanced safety; The software is simple and user-friendly, with intuitive and quick operation.
Type | HBQ-H15A |
Slider Stroke | 40mm |
Power Supply | 220V/50Hz |
Power | 1.0kW |
Terminal Material Thickness |
≤2.5mm |
Crimping Force | 150kN |
Wire Diameter Range | 120m㎡(max) |
Times of Stroke | 7S.P.M(50mm Stroke) |
Overall Dimensions | L800×W750×H1450mm |
Weight |
320kg |
