线束设备系列/HARNESS EQUIPMENT SERIES

CABLE STRIPPING MODULE、PAPER WINDER、WASTE CUTTING MODULE

Product characteristics: Cable Stripping Module Paper Winder Waste Cutting Module

Product information:Product videos, instructions, pictures

Product overview Product characteristics technical parameter Related products

Cable Stripping Module
● Stripping module installed to the terminal crimping machine,
stripping and crimping completed in one-step.
● Stripping depth and length can be conveniently adjusted.
● Match to the 4 tons press machine of THB brand.
● Can be applied to the tape cutting module.
● Different modules designed and developed according to special equipments.
● Can be triggered by foot switch and the micro sensor.

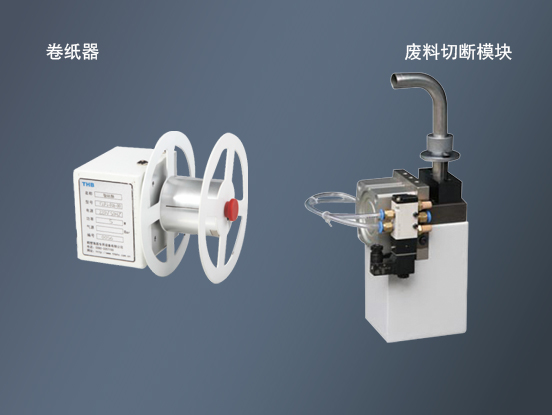

Paper Winder
● Can be matched to any kind of  terminal crimping machine, recove the remai tape after          crimping.
● With the motor driving, quiet, smooth rotation and long life available.
● Easy tape loading.
● Automatic Roll Device is driven by the spring friction ,when the wheel is rotating , terminals will not be pull.
Waste Cutting Module
● Shear bands on the terminal independently, recycling waste concentrately.
● Prevent the waste splashing、scattering when machine is operating, convenient on-site management.
● Installed below the work surface ,waste feeding through the catheter.
● Blade is long-life duration , shear pressure is large.

Cable Stripping Module
● Stripping module installed to the terminal crimping machine,
stripping and crimping completed in one-step.
● Stripping depth and length can be conveniently adjusted.
● Match to the 4 tons press machine of THB brand.
● Can be applied to the tape cutting module.
● Different modules designed and developed according to special equipments.
● Can be triggered by foot switch and the micro sensor.
Paper Winder
● Can be matched to any kind of  terminal crimping machine, recove the remai tape after          crimping.
● With the motor driving, quiet, smooth rotation and long life available.
● Easy tape loading.
● Automatic Roll Device is driven by the spring friction ,when the wheel is rotating , terminals will not be pull.
Waste Cutting Module
● Shear bands on the terminal independently, recycling waste concentrately.
● Prevent the waste splashing、scattering when machine is operating, convenient on-site management.
● Installed below the work surface ,waste feeding through the catheter.
● Blade is long-life duration , shear pressure is large.

Type:YJJFJ-058
Power supply:DC24V
Gas source:5~6Bar
Stripping range:0.35~6mm 2 (9~22AWG)
Stripping length:2~8mm
Single cable length:≥20mm

Type : YJJFJ-014
Power supply : AC220V/50Hz
Air pressure : 0.6~0.8MPa
