European Style Crimping Applicators

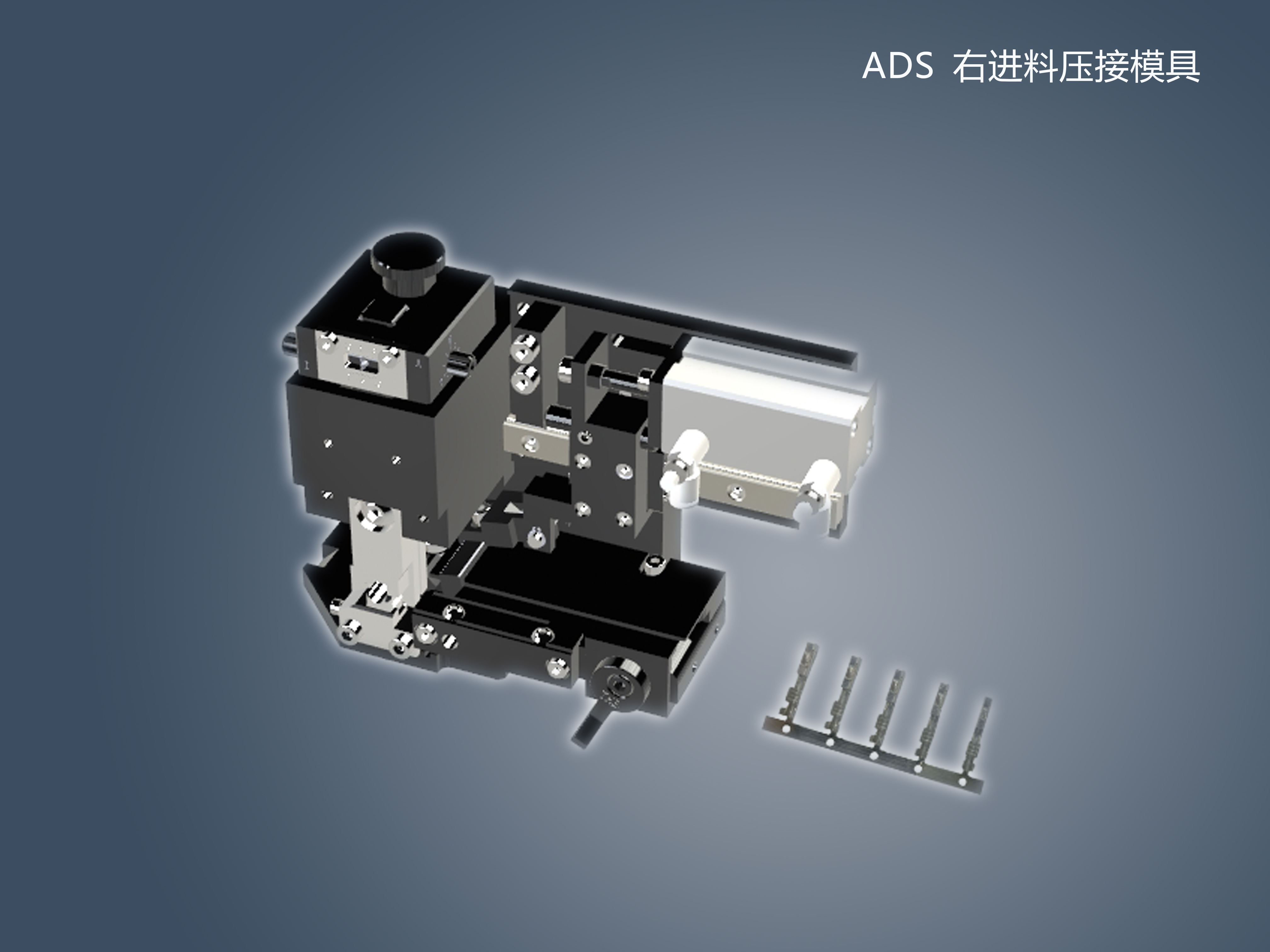

ADS RIGHT FEED CRIMPING DIE
产品特点: Adjustment Freely switch between disk dial and wedge dial. The adjustment accuracy of C.H./IH. is 0.02mm and the adjustment range is up to 2mm. Strong sense of rhythm and legible scale. Feeding mechanism The holder is designed according to the shape of the terminal, which provide a stable feed. Quick change Perfectly fit with Komax, Hacint press and fully automatic crimping applicator machine. Technical documentation You can get a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment. Upon request, a capability study & cross-section analysis can be provided. Strong resistance to rust QW surface plating. Production tracking Laser labeling for each part-unique ID. Cloud data Scan QR code on each name plate to get the data of the applicator in real time.
产品资料:产品视频、说明书、图片
ADS crimping applicator perfectly match with the mainstream European semi-automatic and fully
automatic crimping machine on the market. ADS applicator adopts modular design,
spare parts can be replaced with those on Hacint conventional applicator, which
reduces the vulnerable parts in stock.
Adjustment
Freely switch between disk dial and wedge
dial. The adjustment accuracy of C.H./IH. is 0.02mm and the adjustment range is
up to 2mm. Strong sense of rhythm and legible scale.
Feeding mechanism
The holder is designed
according to the shape of the terminal, which provide a stable feed.
Quick change
Perfectly fit
with Komax, Hacint press and fully automatic crimping applicator machine.
Technical documentation
You can get a complete
technical documentation containing all the information needed to safely use and
correctly maintain the equipment. Upon request, a capability study &
cross-section analysis can be provided.
Strong resistance to rust
QW surface plating.
Production tracking
Laser labeling for each
part-unique ID.
Cloud data
Scan QR code on each name plate to get the data
of the applicator in real time.
Type:ADS
Stroke:40mm
Strip form:Right side feed
Shut height:135.78mm (5.346in)
Wire size:0.08-6.0mm²
Terminal thickness:1.2mm(MAX)
Feed mechanism: Pneumatic
Feeding step:40mm
Weight:5Kg
Dimensions(mm):L200*W150*H170
YJM -AFS300I/YJM -AFE300I CRIMPING APPLICATOR
● Adjustment :Can be supplied either with a continuous or a wedge regulating head,providing a 0.02mm resolutionfor C.H./I.H.and a 2.0mm range, which satisfied your rigorous demand on the crimping. ● Modularized framework: Can be adjusted and maintained c 查看详情AS3B0/AE3BO CRIMPING APPLICATOR
● Adjustment : Can be supplied either with a continuous or a wedge regulating head, providing a 0.02mm Resolution for C.H./I.H.and a 2.0mm range, meet your demands on crimping quality; ● Modularized framework: Can be adjusted and maintained conveniently; ● Switch system: Can be fitted to semi-automatic and fully automatic crimping machine for Occident brand such as KOMAX, AMP, MECAL and so on; ● Technical documentation: You can get a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment. Upon req uest, a capability study & Cross-section Analysis can be provided; ● Strong resistance to rust: Surface plating(Ni); ● Production tracking: Laser marking for every part. 查看详情S3D CRIMPING APPLICATOR
● Adjustment : C.H/I.H adjustment accuracy of 0.01mm and 0.02mm, adjustment range of 2.0mm, adjust the rhythm sense, the scale is easy to identify, to meet your "demanding" requirements for crimp quality; ● Modular structure: easy to adjust and maintain, super flexible to create unlimited expansion space, completely break the terminal and crimpMold 1:1 pattern, affordable; ● Feeding mechanism: At the same time, we provide you with two solutions: pre-feed (semi-automatic) and post-feed (automatic). The material step is visible; ● Quick change: a semi-automatic and fully automatic crimping applicator machine that perfectly matches European and American brands such as KOMAX, AMP, and MECAL; ● Technical documents: provide complete instructions for use and maintenance, and provide machine capability studies and breaks if required.Surface analysis report and other documents; ● Strong resistance to rust: QW surface plating; ● Production tracking: Laser labeling for each part-unique ID. 查看详情GS3M2 CRIMPING APPLICATOR
GS3M2 applicator, Euro mechanical feed applicator, adopts cam feed mechanism, which ensures stable feeding and easy adjustment. Easy adjustment and stable crimping applicator make GS2M2 GS3M2 applicator widely used in the wire harness industry. 查看详情SENSING APPLICATOR(AFS300B-S)
As the upgrade version of the classic precision applicator, AFS300B-S can ensure a same wire position for every crimping and ensure the consistent crimping quality. The press could crimp the wires after stepping the pedal only if the wire touched the sensor and the press got the signal. Easy adjustment and stable feeding make this crimping applicator widely used in wire harness industry. 查看详情AFS300K CRIMPING APPLICATOR
As the newer version of the regular side-feed applicator, AFS300K is applicable for the wire size lower than 0.35mm². The dial of the adjust scale 0.01mm and the fine adjust feed with fine-thread screw provide precise adjustment. It’s easy to adjust the bell mouth without removing the applicator from the machine. The terminal strip is fixed in the front and rear, which ensures stable crimping applicator.Easy adjustment and stable crimping applicator make AFS300K applicator widely used in the wire harness industry. 查看详情
