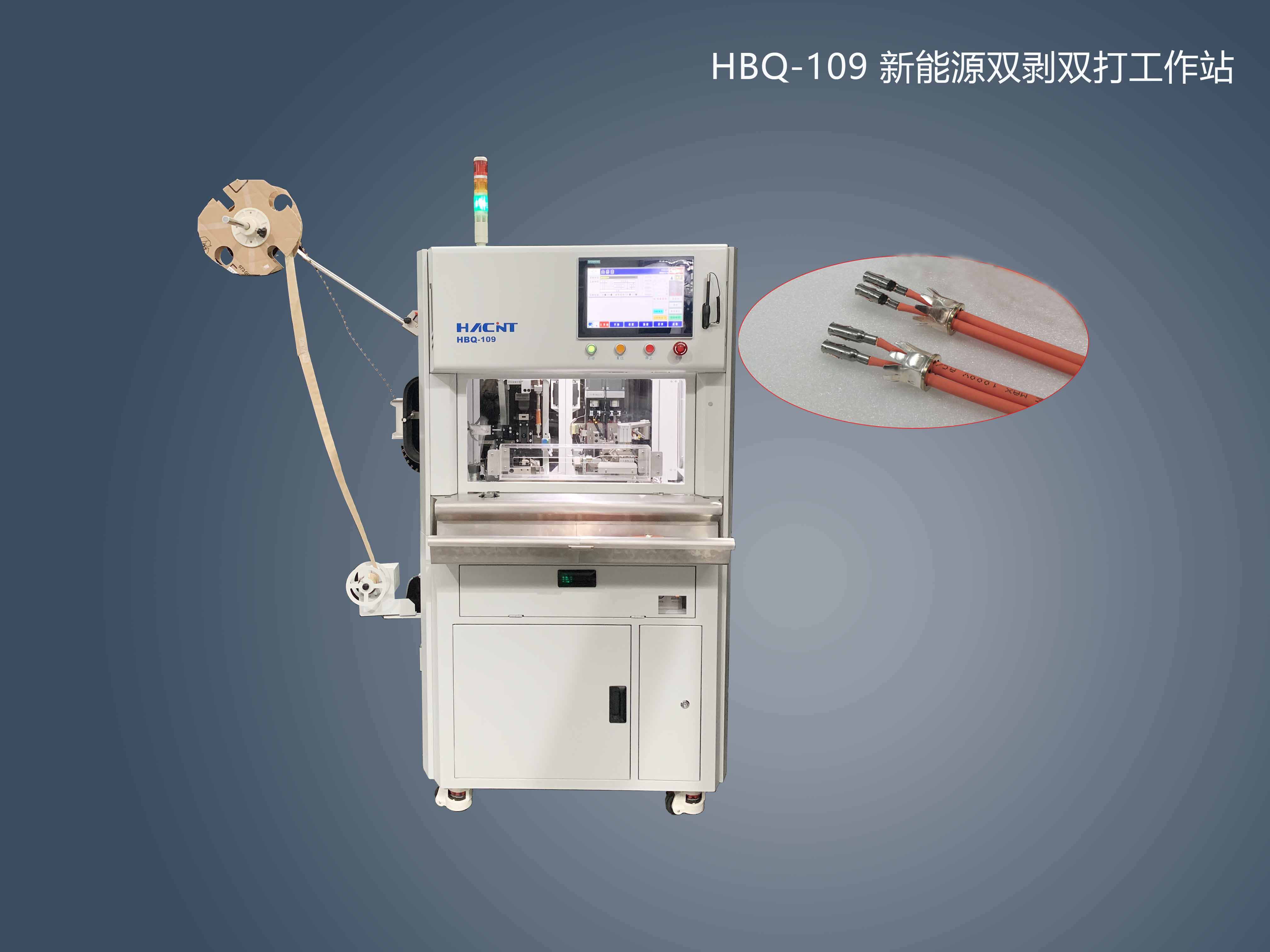

HBQ-109 Dual-Wire Crimping Machine
HBQ-109 is a newly developed dual-core stripping and crimping machine for EV by Hacint. It adopts a high-precision servo-motor cutter module and a horizontal conveying structure with an electric cylinder equipped with an absolute encoder. This can ensure that both the stripping accuracy and the crimping position accuracy can reach 0.01mm. The floating wire - grasping mechanism used can ensure the consistency of double - wire crimping at different heights. 查看详情
HBQ-109 Dual-Wire Crimping Machine

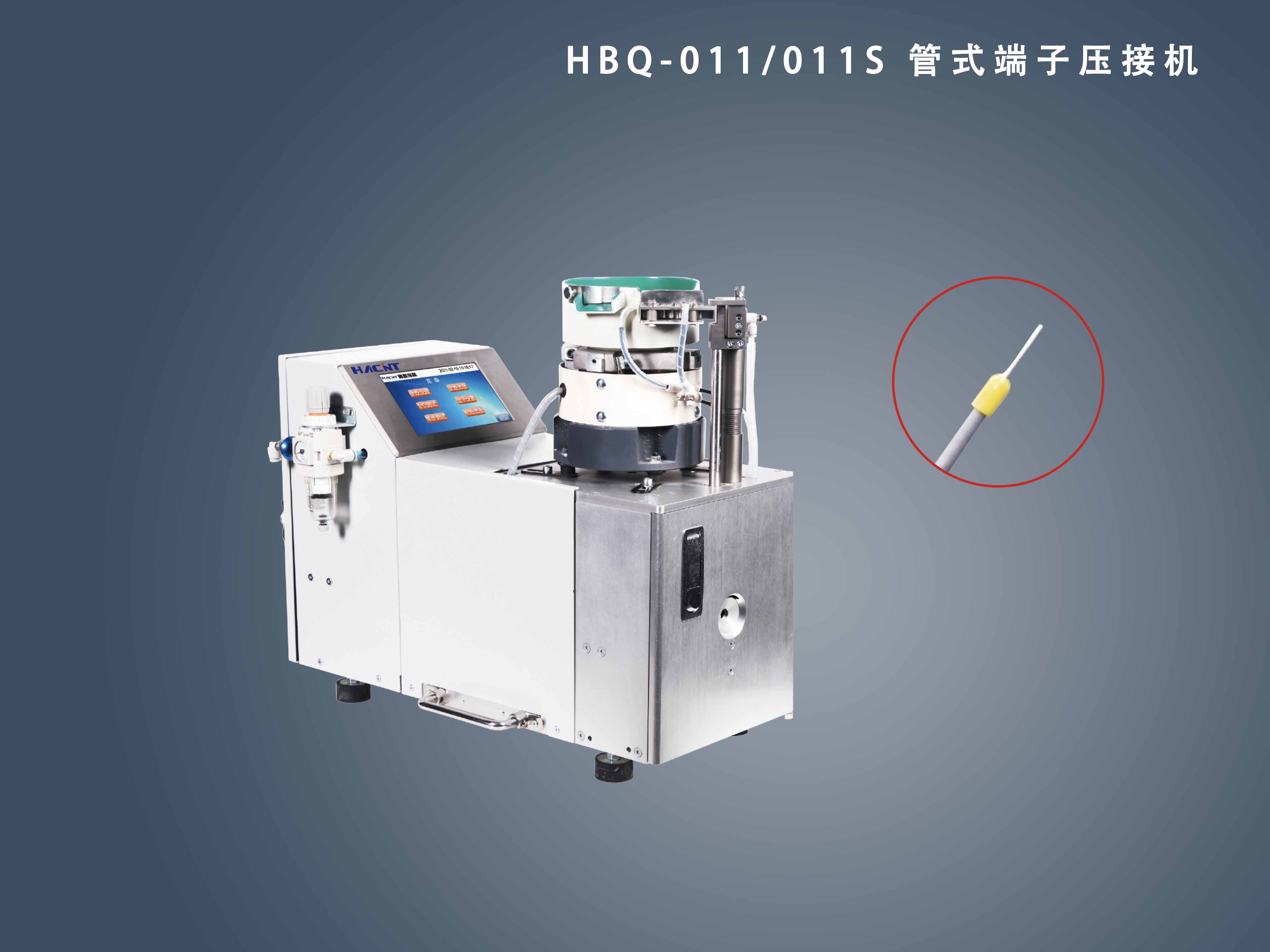

HBQ-011/011S FERRULES CRIMPING MACHINE
HBQ-011/011S is one of stripping and crimping machine specially designed for ferrule terminals. It is compact, high effective and easy to operate. 查看详情
HBQ-011/011S FERRULES CRIMPING MACHINE

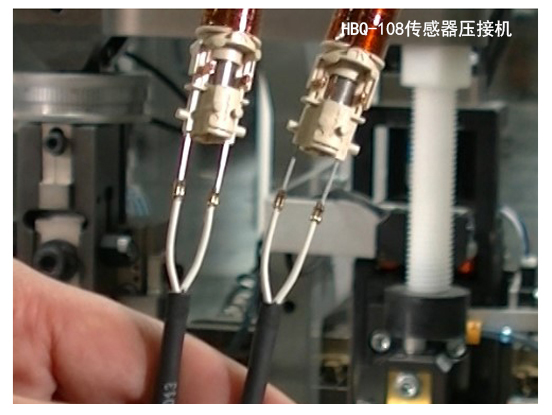

HBQ-108 SENSOR CRIMPING MACHINE
查看详情
HBQ-108 SENSOR CRIMPING MACHINE

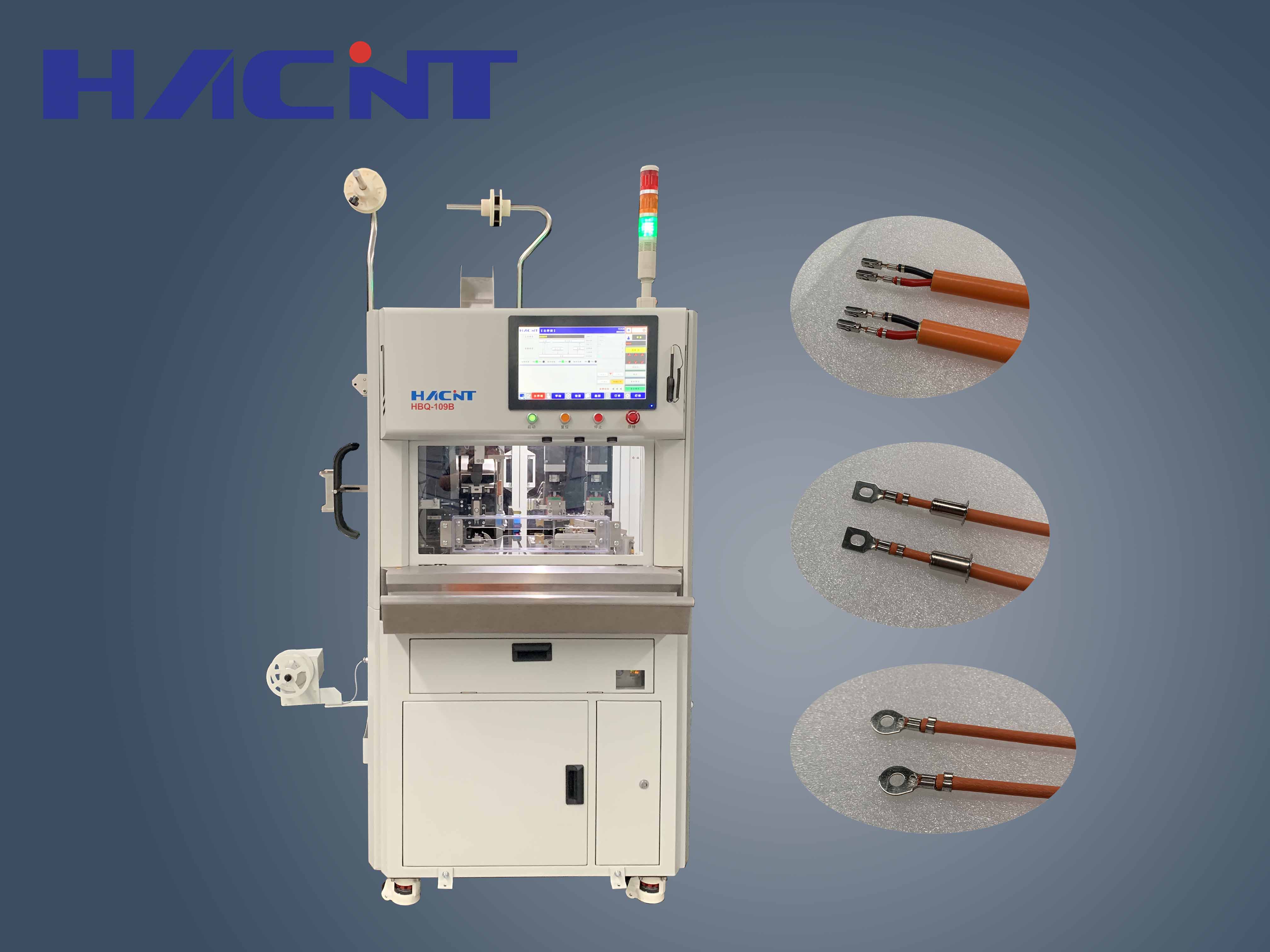

HBQ-109B Duali-Wire Crimping Machine
HBQ-109B is developed by Hacint for new energy industry, it can automatically strip and crimp double-core housing wire, which is suitable for a variety of wires and terminals, compatible with vertical end-feed terminals. With high precision cutting module of double servo motors, the cutting depth parameters can be independently adjusted for double cutting tools, greatly improve the stripping quality. The accuracy of stripping depth and crimping position can reach 0.01mm, with optional device for color detection and stripping detection. 查看详情
HBQ-109B Duali-Wire Crimping Machine
HBQ-230A FAKRA Crimping Depth Detection Integrated Machine
HBQ-230A is applied to the hexagonal crimping and inspection of loose outer conductors for FAKRA wire harnesses. After the operator completes the manual assembly of the outer conductor, wire harness, and copper ring, the product is placed in the online position of the equipment. It undergoes depth inspection before crimping, hexagonal crimping, and depth inspection after crimping. Equipped with a high-precision GT displacement sensor from Keyence and a Hacint servo crimping machine, it significantly enhances production efficiency, accurately ensures product quality, and provides customers with an excellent cost-performance experience. 查看详情
HBQ-230A FAKRA Crimping Depth Detection Integrated Machine
