产品特点: ● System self-check: The system hardware has a self-check function to prevent quality issues caused by errors in system hardware; ● Comprehensive functions: It can detect the continuity, open-circuit, short-circuit, wrong-circuit of wire harnesses, as well as loop resistance and relay functions. It also has detection functions such as airtightness (positive and negative pressure), locking piece, airbag, fuse, buckle, and can determine the installation direction of diodes in wire harnesses. Moreover, it supports the printing and scanning functions of one-dimensional and two-dimensional codes; ● Permission management: Different usage rights can be set according to different users, including three levels of rights: operator, administrator, and quality inspector. This can prevent quality problems caused by employees modifying the detection program on their own. ● Simple interface: Friendly PC interface, controlled by industrial computer, easy to connect to MES, supports both Chinese and English interfaces; ● Diversified drawing editing: There are three methods for editing drawing circuits: self-learning, wire number-based, and circuit table import; ● Data universality: It has housings library and module library editing functions, allowing for one-time editing and application across multiple drawings; ● High speed: Testing speed >1024 points/second, with the capacity to expand to over 4096 points; ● Diverse display: Image, list, and item-by-item display detection interface.

产品资料:产品视频、说明书、图片

产品概述 产品特性 技术参数 相关产品

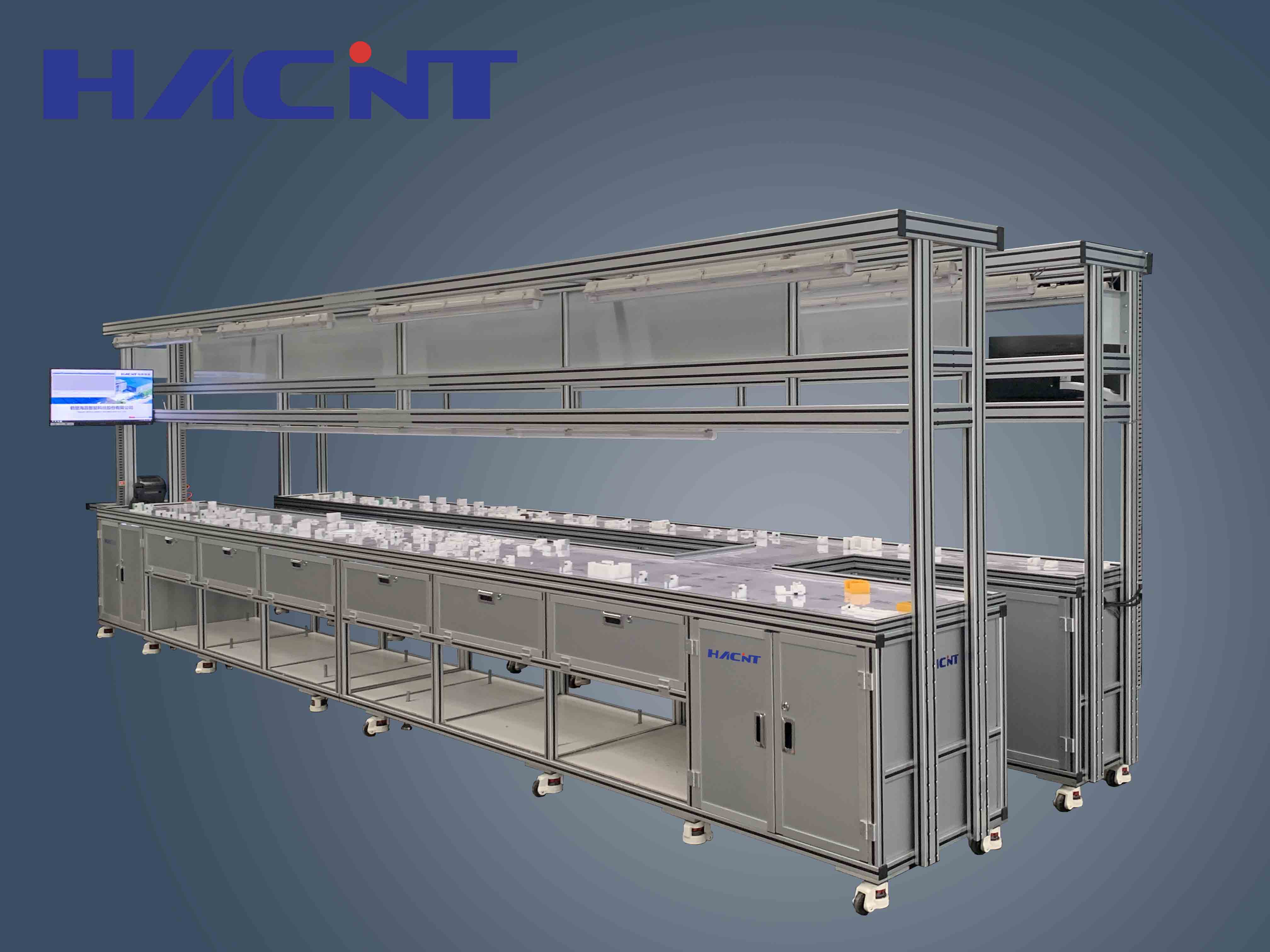

CS testing table is a special equipment for wire harness detection independently developed by our company. The whole equipment adopts the industrial -grade integrated design standard. The main control part uses an industrial-grade computer, operating based on the Win7 system, with stable and reliable performance, which reduces the equipment failure rate. The I/O interface board uses surface-mounted electronic components, featuring low power consumption, small size, light weight, and high reliability. When editing drawings, it adopts a pipeline -style workflow, and is also accompanied by detailed help files, which facilitates the operation for users. While you use our products with ease, you can also experience the value of elevating your operational level to a leading position in the industry.



● System self-check: The system hardware has a self-check function to prevent quality issues caused by errors in system hardware;
● Comprehensive functions: It can detect the continuity, open-circuit, short-circuit, wrong-circuit of wire harnesses, as well as loop resistance and relay functions. It also has detection functions such as airtightness (positive and negative pressure), locking piece, airbag, fuse, buckle, and can determine the installation direction of diodes in wire harnesses. Moreover, it supports the printing and scanning functions of one-dimensional and two-dimensional codes;
● Permission management: Different usage rights can be set according to different users, including three levels of rights: operator, administrator, and quality inspector. This can prevent quality problems caused by employees modifying the detection program on their own.
● Simple interface: Friendly PC interface, controlled by industrial computer, easy to connect to MES, supports both Chinese and English interfaces;
● Diversified drawing editing: There are three methods for editing drawing circuits: self-learning, wire number-based, and circuit table import;
● Data universality: It has housings library and module library editing functions, allowing for one-time editing and application across multiple drawings;
● High speed: Testing speed >1024 points/second, with the capacity to expand to over 4096 points;
● Diverse display: Image, list, and item-by-item display detection interface.







Type

CS

Air Supply

0.5~0.6MPa

Power Supply

AC220V/50Hz

Measuring Range

>4096

Testing Current

1~10mA

Power

350W (Max)

Testing Voltage

0~5V

Testing Speed

>1024点/s

Overall Dimensions

Customizable

Weight

Up to the structure

  • CS Testing Table

    CS testing table is a special equipment for wire harness detection independently developed by our company. The whole equipment adopts the industrial -grade integrated design standard. The main control part uses an industrial-grade computer, operating based on the Win7 system, with stable and reliable performance, which reduces the equipment failure rate. The I/O interface board uses surface-mounted electronic components, featuring low power consumption, small size, light weight, and high reliability. When editing drawings, it adopts a pipeline -style workflow, and is also accompanied by detailed help files, which facilitates the operation for users. While you use our products with ease, you can also experience the value of elevating your operational level to a leading position in the industry. 查看详情
    CS Testing Table
  • HCS6000 Testing Table

    High voltage tester is designed for the performance test, especially for the performance test of the new energy cable. The test items include low voltage conducting test, air tight test, AC voltage withstand test, DC voltage withstand test and insulation resistance test. 查看详情
    HCS6000 Testing Table
  • HCS6000A Wire harness testing system

    This equipment is mainly used for the performance test of high-voltage cables, especially for the performance test of new energy harness. The test items include: low voltage conduction test, air tightness test, AC withstand voltage test, DC withstand voltage test, insulation resistance test, micro resistance test (four wire method), etc. 查看详情
    HCS6000A Wire harness testing system
  • HCSA New Energy Wire Harness Clip Testing Table

    HCSA New Energy Wire Harness Clip Testing Table is used for installing and detecting clamps and clips in wire harness industry. It developed for the irregular clip distribution structure of the new energy vehicle wire harness. It solves the problem of inefficient installation and detection of the new energy wire harness clips separately. It greatly improves the efficiency, and also solves the problems of missing and wrong installing, effectively ensuring product quality. 查看详情
    HCSA New Energy Wire Harness Clip Testing Table

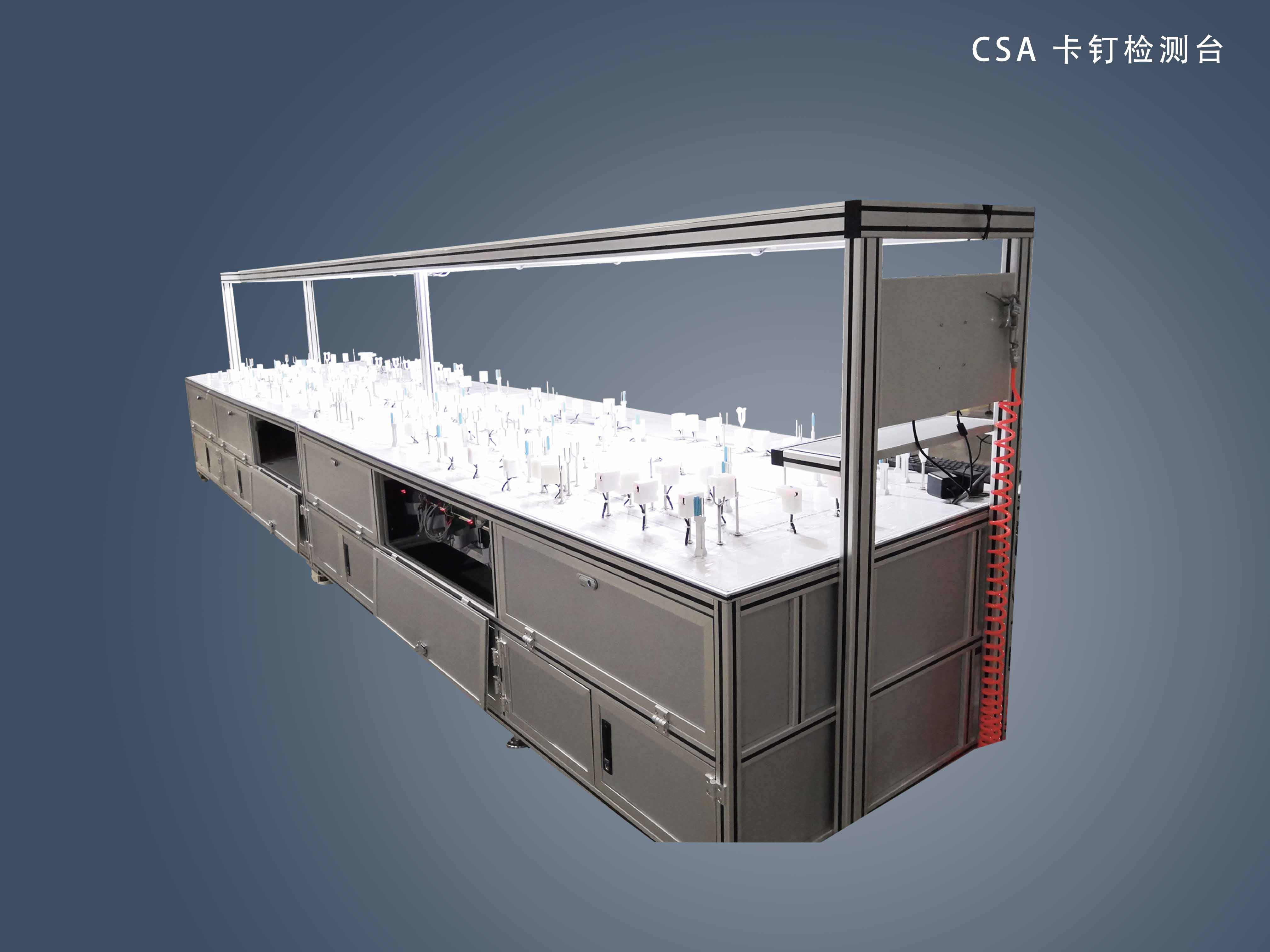

  • CSA Cable Tie Test Table

    CSA is one of testing machine used for the installation and testing of the cable ties. It integrates the installation and testing together, which greatly increase the efficiency. On-line testing of cable ties avoids the mistakes of installations. 查看详情
    CSA Cable Tie Test Table
  • CSA-H Low Voltage Wire Harness Clip Testing Table

    CSA-H low-voltage wire harness clip testing table is used for installing and detecting clamps and clips in wire harness industry. It is a testing table specially developed for the flexible design of automotive wire harness by using modern computer technology and database technology according to the clips distribution structure. It solves the problem of low efficiency in the separate installation and detection of clips, it realizes the online detection of clips, it detects the problem of missing and wrong installation, and improves the efficiency. It can be counted and recorded in real time, effectively ensuring product quality. At the same time, it also solves the problem that the wiring harness has too many branches, the drawing layout is wide, and the operator cannot operate it. 查看详情
    CSA-H Low Voltage Wire Harness Clip Testing Table
