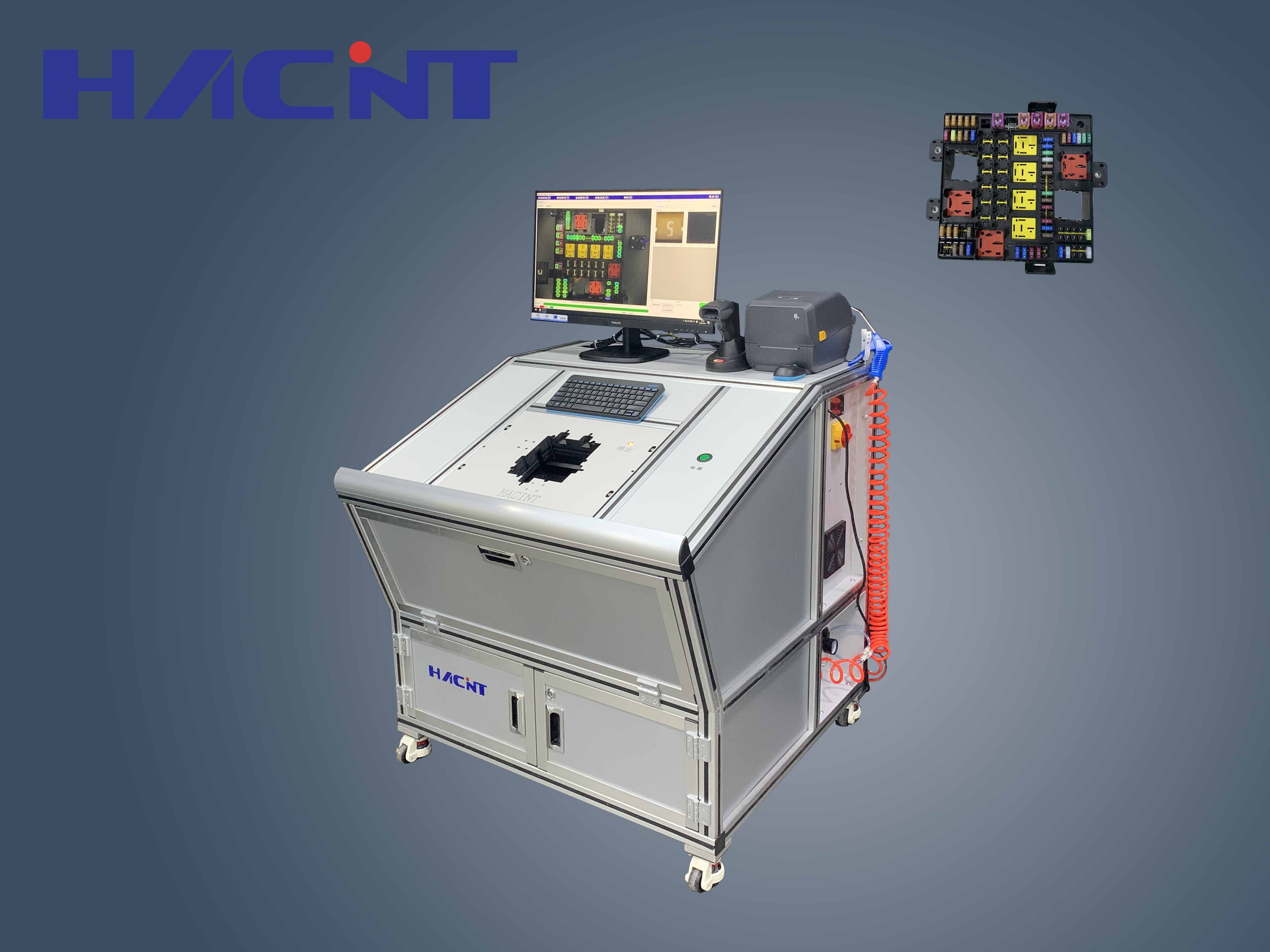

CSB is a special machine for electrical box detection independently developed by Hacint. It identifies and detects whether the installation position and direction of the electrical box fuse are correct through color comparison and character comparison methods. This machine adopts an advanced visual detection system, which can recognize a wide variety of complex fuse models and accurately determine the correctness of the installation position and direction of the fuses. The operation interface is simple and easy to understand, with stable and reliable performance and high detection efficiency. The overall machine adopts the industrial - grade integrated design standard, featuring a small size, light weight, safety and reliability. The workstations can be interchanged to meet the detection requirements of various electrical boxes.

● Easy operation: Sampling is based on real-life photos, and the programming and operating system are simple and easy to use;
● Intuitive information: Visual programming interface, intuitive prompts for error areas, accompanied by correct images for comparison, and voice broadcast of results;
● Support for rework: Errors detected can be manually unlocked, modified, and re-inserted. If it passes the inspection, it will automatically unlock and eject the protective sleeve;
● Record keeping: After the test results are qualified, a qualified barcode will be automatically printed, and the test qualification record (photo or document) will be automatically archived, the records can reflect errors, modifications, and pass rates, and can be saved in various ways;
● Fully functional: Detect fuse links and relays (missing, incorrect, or multiple insertion) and their correctness;
● Quick product changeover: Humanized design, safe and stable, allowing for quick replacement of fixtures, enabling multi-purpose use of one machine;
● High-precision detection: The camera boasts high pixel density and excellent luminance vision, enabling rapid recognition of physical objects;
● High detection efficiency: Scanning and retrieving programs are efficient and convenient, with a short detection time of 3~6S;
● User-friendly interface: The user-friendly human-computer interface and more intuitive graphical display enhance visibility and operability.

•

  CS Testing Table

  CS testing table is a special equipment for wire harness detection independently developed by our company. The whole equipment adopts the industrial -grade integrated design standard. The main control part uses an industrial-grade computer, operating based on the Win7 system, with stable and reliable performance, which reduces the equipment failure rate. The I/O interface board uses surface-mounted electronic components, featuring low power consumption, small size, light weight, and high reliability. When editing drawings, it adopts a pipeline -style workflow, and is also accompanied by detailed help files, which facilitates the operation for users. While you use our products with ease, you can also experience the value of elevating your operational level to a leading position in the industry. 查看详情
  CS Testing Table
•

  HCS6000 Testing Table

  The HCS6000 testing table is primarily designed for voltage testing of high-voltage cables, particularly suitable for voltage testing of new energy wire harnesses. Test items include: low-voltage continuity testing, air tightness testing, and AC withstand voltage testing Voltage test, DC withstand voltage test, insulation resistance test, micro-resistance test (four-wire method), electronic lock inspection, etc. 查看详情
  HCS6000 Testing Table
•

  HCS6000A Wire harness testing system

  This equipment is mainly used for the performance test of high-voltage cables, especially for the performance test of new energy harness. The test items include: low voltage conduction test, air tightness test, AC withstand voltage test, DC withstand voltage test, insulation resistance test, micro resistance test (four wire method), etc. 查看详情
  HCS6000A Wire harness testing system
•

  HCSA New Energy Wire Harness Clip Testing Table

  HCSA New Energy Wire Harness Clip Testing Table is used for installing and detecting clamps and clips in wire harness industry. It developed for the irregular clip distribution structure of the new energy vehicle wire harness. It solves the problem of inefficient installation and detection of the new energy wire harness clips separately. It greatly improves the efficiency, and also solves the problems of missing and wrong installing, effectively ensuring product quality. 查看详情
  HCSA New Energy Wire Harness Clip Testing Table
•

  CSA Cable Tie Testing Table

  CSA cable tie testing table is an installation and detection machine used in the wire harness industry, integrating the installation and detection of cable tie buckles. It addresses the issue of low efficiency caused by separate operations of cable tie installation and detection. With in - line detection of cable ties, it solves the problems of missed installation and incorrect installation, leading to a significant increase in efficiency. 查看详情
  CSA Cable Tie Testing Table
•

  CSA-H Low Voltage Wire Harness Clip Testing Table

  CSA-H low-voltage wire harness clip testing table is used for installing and detecting clamps and clips in wire harness industry. It is a testing table specially developed for the flexible design of automotive wire harness by using modern computer technology and database technology according to the clips distribution structure. It solves the problem of low efficiency in the separate installation and detection of clips, it realizes the online detection of clips, it detects the problem of missing and wrong installation, and improves the efficiency. It can be counted and recorded in real time, effectively ensuring product quality. At the same time, it also solves the problem that the wiring harness has too many branches, the drawing layout is wide, and the operator cannot operate it. 查看详情
  CSA-H Low Voltage Wire Harness Clip Testing Table
