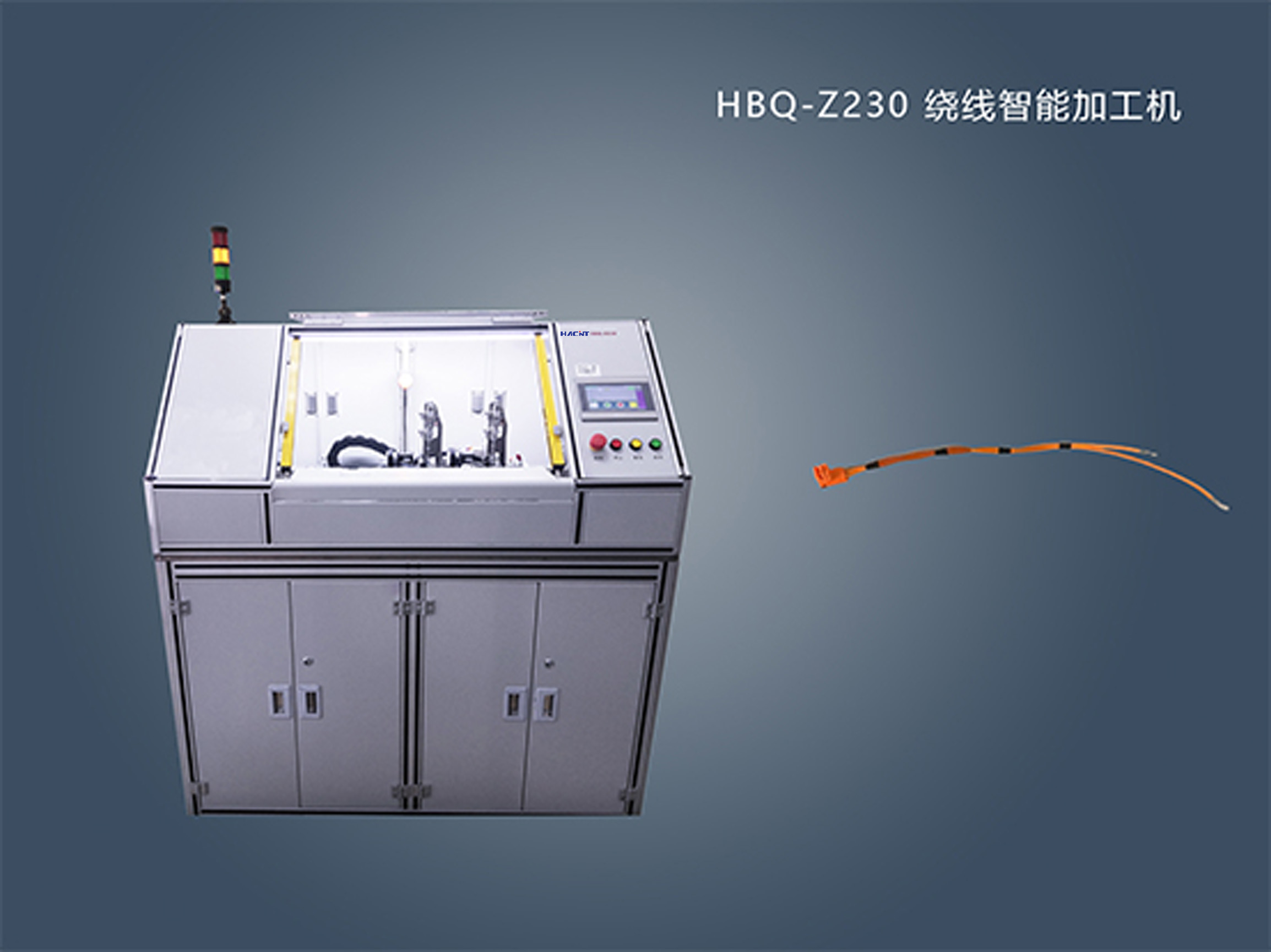

HBQ-Z230 WIRE WINDING MACHINE

产品特点:

产品资料:产品视频、说明书、图片

产品概述 产品特性 技术参数 相关产品

HBQ-Z230 Wire Winding Machine is specialized in multifunction of twisting, continuous winding tape and fixed point winding tape, at the same time to achieve three functions automatically.

 Efficient Operation

Compact overall layout, single operation cycle 45S (manual 100S)

Simple Operation

Touch screen control, set parameters, point operation, one-button switch process.

Easy Maintenance
Concise and reasonable structure, convenient maintenance.

项目Item

参数 Specification

型号 Type

HBQ-Z230

功能 Function

绞线,连续缠胶带,定点缠胶带

Wire winding, continuous tape, fixed point tape

线长

Wire Length

650mm

连续缠胶带长度

Continuous tape length

170mm

电压

Power Supply

AC220V/50Hz

功率 Power

4kW

气源 Air Supply

0.50.7Mpa

环境温度 Temperature

040

外形尺寸 Dimension

L1400×W900×H1400

重量 Weight

700kg

注:某些被加工产品因材料或结构特殊可能不能进行处理,即使它们在所示的技术参数范围之内,如有疑问我们很乐意为您试样。

Note:

some processed products may not be processed due to the special material or structure, even if they are within the range of the technical parameters. If any concerns, we are pleasure to provide samples for you.

  • HBQ-901 HARNESS PROCESSING CENTER

    The HBQ-901 harness processing center can perform the functions of cutting, stripping, sealing, crimping and inserting terminals into connector and it can process wires up to 6, saving a lot of manpower for wire harness manufacturers, effectively reducing the number of products in progress, increasing the company’s market response sensitivity and improving product quality. This product is suitable for the production of large order quantity and less than or equal to 6 kinds of wiring harness, and the relative efficiency is higher. This type of equipment adopts modular design ideas, can provide customized services, and flexibly adjust the station layout according to the actual production conditions of customers, which has good market applicability. 查看详情
    HBQ-901 HARNESS PROCESSING CENTER
  • HBQ-902 Harness Processing Center

    HBQ-902 harness processing center can complete functions such as cutting, stripping, seal loading, crimping, and terminal insertion into housings for up to 48 wires, saving a significant amount of manpower for wire harness manufacturing enterprises and reduce the number of work-in-process products, enhance the market responsiveness of the enterprise, and improve product quality. This equipment can better adapt to the situation of inserting terminals of multiple housings simultaneously, and has better compatibility with complex terminal - inserting processes involving a variety of terminal - inserting types. This type of equipment adopts a modular design approach, which allows for customized services. It can flexibly adjust the layout of workstations according to the actual production conditions of customers, and has good market applicability. 查看详情
    HBQ-902 Harness Processing Center
  • HBQ-G511 Automatic Single Wire Stranding and Inserting Machine

    HBQ-G511 Fully automatic single wire stranding and inserting machine is a kind of automatic wire harness processing equipment with one end crimping, tail tinning and stranding and inserting the shell, including terminal crimping, tail tinning, terminal CCD appearance detection, terminal insertion force pulling force detection, pin crimping, terminal housing, stranding shell and other functions, suitable for automotive wire harness, home appliance electronic wire. The layout of the whole machine adopts modular design, high efficiency, convenient debugging, modular change, high efficiency, Key components of the whole machine are imported or well-known domestic brands to ensure the reliability of the equipment. HBQ-G511 Fully automatic single wire stranding and inserting machine, the whole machine includes: a set of main machine, a set of pay-off machine, the main machine can process 50mm-600mm long wire, processing 0.04mm²-2mm² wire. 查看详情
    HBQ-G511 Automatic Single Wire Stranding and Inserting Machine
  • HBQ-G511B Single-head Housing Machine

    HBQ-G511B is an automatic wire harness processing equipment featuring double-ended crimping and single-ended shell insertion. Its functions include crimping, terminal CCD appearance inspection, terminal insertion force and pull-off force inspection, and terminal Shell insertion, etc., suitable for automotive wire harnesses and home appliance electronic wires. The overall layout adopts a modular design, which ensures high efficiency and convenient debugging. It adopts modular changeover, which is efficient in changeover. The key components of the whole machine are imported or from well - known domestic brands to ensure the reliability of the equipment. HBQ-G511B complete machine includes: 1 set of main machine and 1 set of wire laying machine. The main machine can process wires with lengths ranging from 60 to 2000 millimeters and cross-sectional areas ranging from 0.1 to 2.0 square millimeters. 查看详情
    HBQ-G511B Single-head Housing Machine
  • HBQ-G512 Double-head Housing Machine

    HBQ-G512 automatic double-head housing machine is a wire harness processing equipment featuring automatic double-head crimping and double-head single-wire shell insertion. Functions include crimping, seal loading (optional), pressure management device, terminal CCD appearance inspection (optional), stripping CCD inspection (optional), terminal insertion force and pull - off force inspection, double - ended shell insertion, multi - layer shell insertion, cross - shell insertion, etc. The processed products are applicable to automotive wire harnesses and home appliance electronic wires. The overall layout of the machine adopts a modular design, which is highly efficient and easy to debug. This equipment is equipped with terminal pressure detection, stripping CCD inspection (optional), core wire quantity CCD inspection (optional), terminal CCD appearance inspection, terminal insertion force inspection, terminal pull - off force inspection to prevent defective products from flowing out. Key components are imported or from well - known domestic brands to ensure the reliability of the equipment. The complete machine includes: 1 set of the main machine, 1 set of the wire - feeding machine, a wire - take - up device. The main machine can process wires with a length of 100 - 700 millimeters and a cross - sectional area of 0.04 - 2 square millimeters. The wire - feeding machine can hold a maximum of 400 reels (drums) of incoming materials. 查看详情
    HBQ-G512 Double-head Housing Machine
  • HBQ-G515 Double-head Housing machine (V2.0)

    HBQ-G515 double-head housing machine (V2.0) is a automatic wire harness processing equipment for double-head multi-wire crimping, shelling, tail tin dipping, or double-head multi-wire crimping and shelling. It is suitable for utilizing automotive wire harnesses, home appliance electronic wires and flat cables, the overall layout adopts a modular design, ensuring high efficiency, convenient debugging, and support for rapid type changeover, which can be completed within 1 hour. The equipment is equipped with terminal pressure inspection, stripping CCD inspection (optional), terminal CCD appearance inspection (optional), terminal in-place CCD inspection (optional), NG cutting fool-proofing to prevent defective products from flowing out. Key components are imported or sourced from well - known domestic brands to ensure the reliability of the equipment. 查看详情
    HBQ-G515 Double-head Housing machine (V2.0)
