The HBQ-901 harness processing  center can perform the functions of cutting, stripping, sealing, crimping and inserting terminals into connector and it can process wires up to 6, saving a lot of manpower for wire harness manufacturers, effectively reducing the number of products in progress, increasing the company’s market response sensitivity and improving product quality. This product is suitable for the production of large order quantity and less than or equal to 6 kinds of wiring harness, and the relative efficiency is higher. This type of equipment adopts modular design ideas, can provide customized services, and flexibly adjust the station layout according to the actual production conditions of customers, which has good market applicability.

● Flexible expansion: using industrial computer control, it is convenient to connect to MES, and expa
nd various functions.
● Highly intelligent: only need to insert the wire manually, and all other processing is automatically co
mpleted by the equipment.
● Simple operation: visual and intuitive parameter setting interface, convenient and flexible for proce
ss parameter setting.
● Accurate control: the stripping, inserting end, and wire transfer all adopt servo motors to precisely
control the displacement accuracy.
● Online detection: equipped with precision force measuring device, which can dynamically display
the size of insertion force and withdrawal force and save data.
● Stable quality: equipped with pressure management device and defective product management
device to prevent defective products from flowing into the next station.

Wire Cross Sections：0.35~2mm²
 Wire Number：≤6
Stripping Length ：0.1~18mm
 Feeding Speed ：3m/s（max）
 Cutting Length：A:Simple insertion both ends    300～3000mm
B:Composite insertion both ends    700～3000mm
C:Single end insertion（Need to process the other ends） 280～2000mm
D: Single end insertion（No need to process the other ends） 80～2000mm
Seal Type ：2(Optional)
Crimping Station： 4(Optional)
Feeding Accuracy  ：±（1+0.2%*L）mm
Power Supply：AC380V/50Hz
Air Supply ：5～6Bar

•

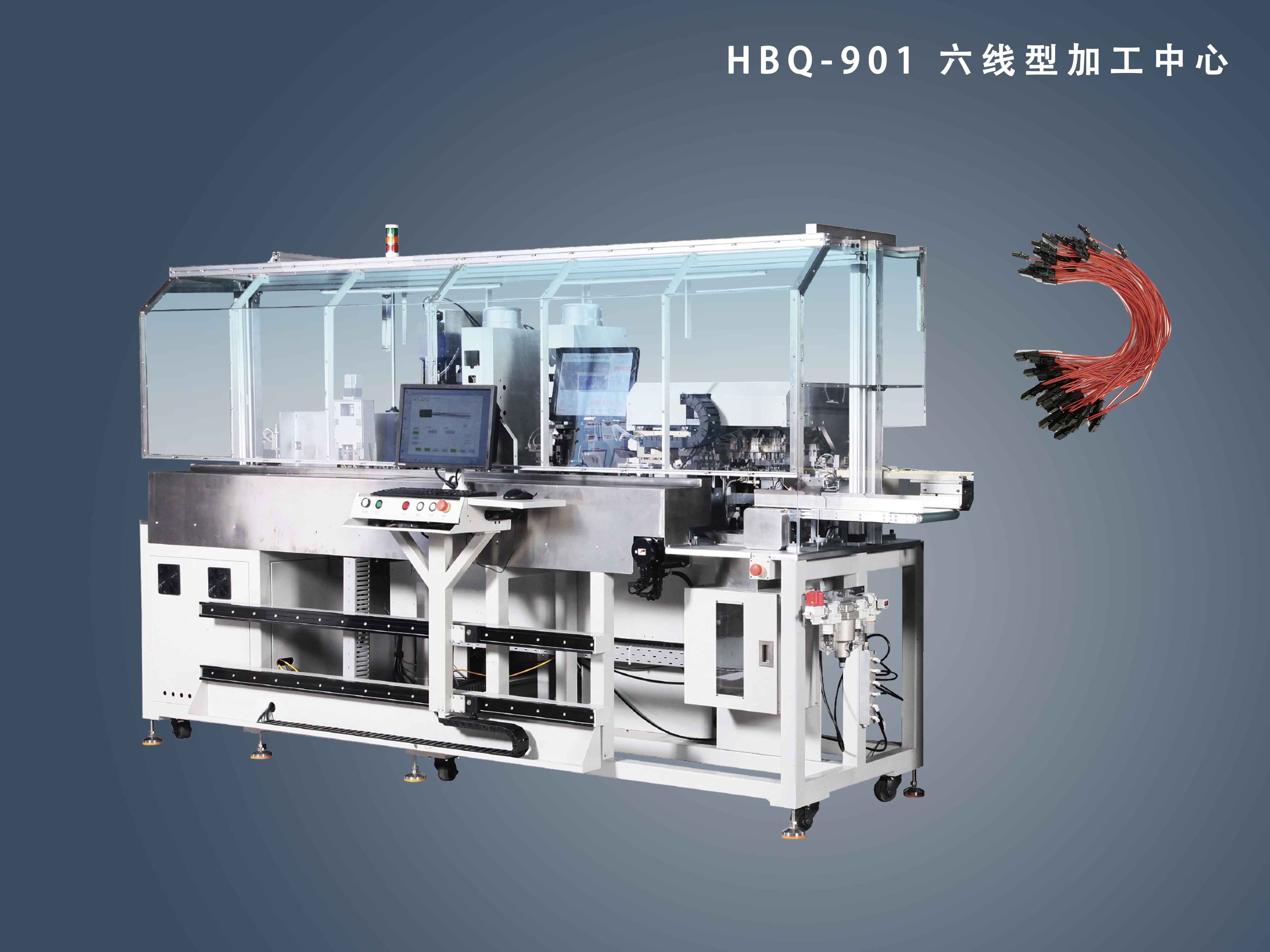

  HBQ-901 HARNESS PROCESSING CENTER

  The HBQ-901 harness processing center can perform the functions of cutting, stripping, sealing, crimping and inserting terminals into connector and it can process wires up to 6, saving a lot of manpower for wire harness manufacturers, effectively reducing the number of products in progress, increasing the company’s market response sensitivity and improving product quality. This product is suitable for the production of large order quantity and less than or equal to 6 kinds of wiring harness, and the relative efficiency is higher. This type of equipment adopts modular design ideas, can provide customized services, and flexibly adjust the station layout according to the actual production conditions of customers, which has good market applicability. 查看详情
  HBQ-901 HARNESS PROCESSING CENTER
•

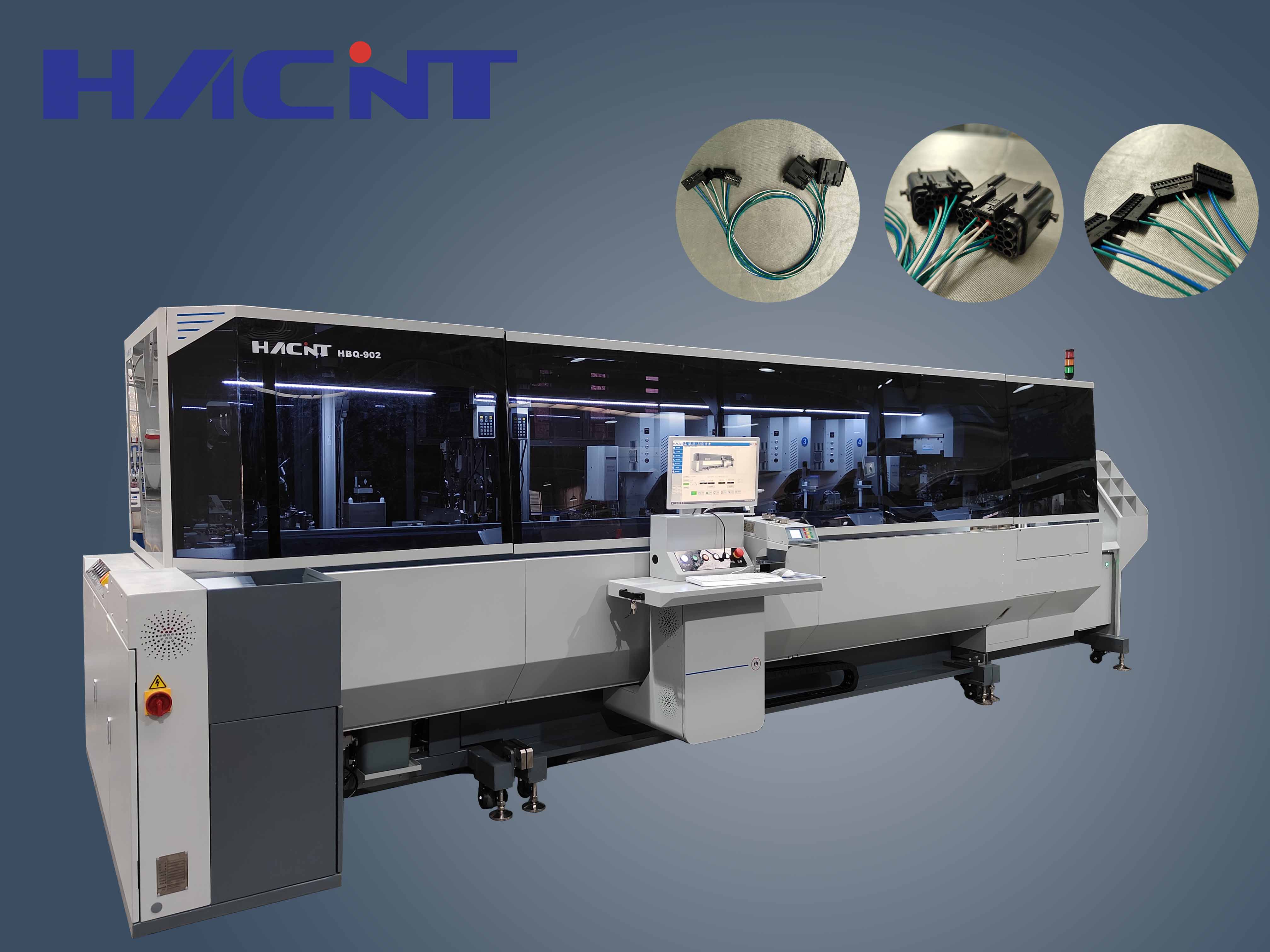

  HBQ-902 Harness Processing Center

  HBQ-902 harness processing center can complete functions such as cutting, stripping, seal loading, crimping, and terminal insertion into housings for up to 48 wires, saving a significant amount of manpower for wire harness manufacturing enterprises and reduce the number of work-in-process products, enhance the market responsiveness of the enterprise, and improve product quality. This equipment can better adapt to the situation of inserting terminals of multiple housings simultaneously, and has better compatibility with complex terminal - inserting processes involving a variety of terminal - inserting types. This type of equipment adopts a modular design approach, which allows for customized services. It can flexibly adjust the layout of workstations according to the actual production conditions of customers, and has good market applicability. 查看详情
  HBQ-902 Harness Processing Center
•

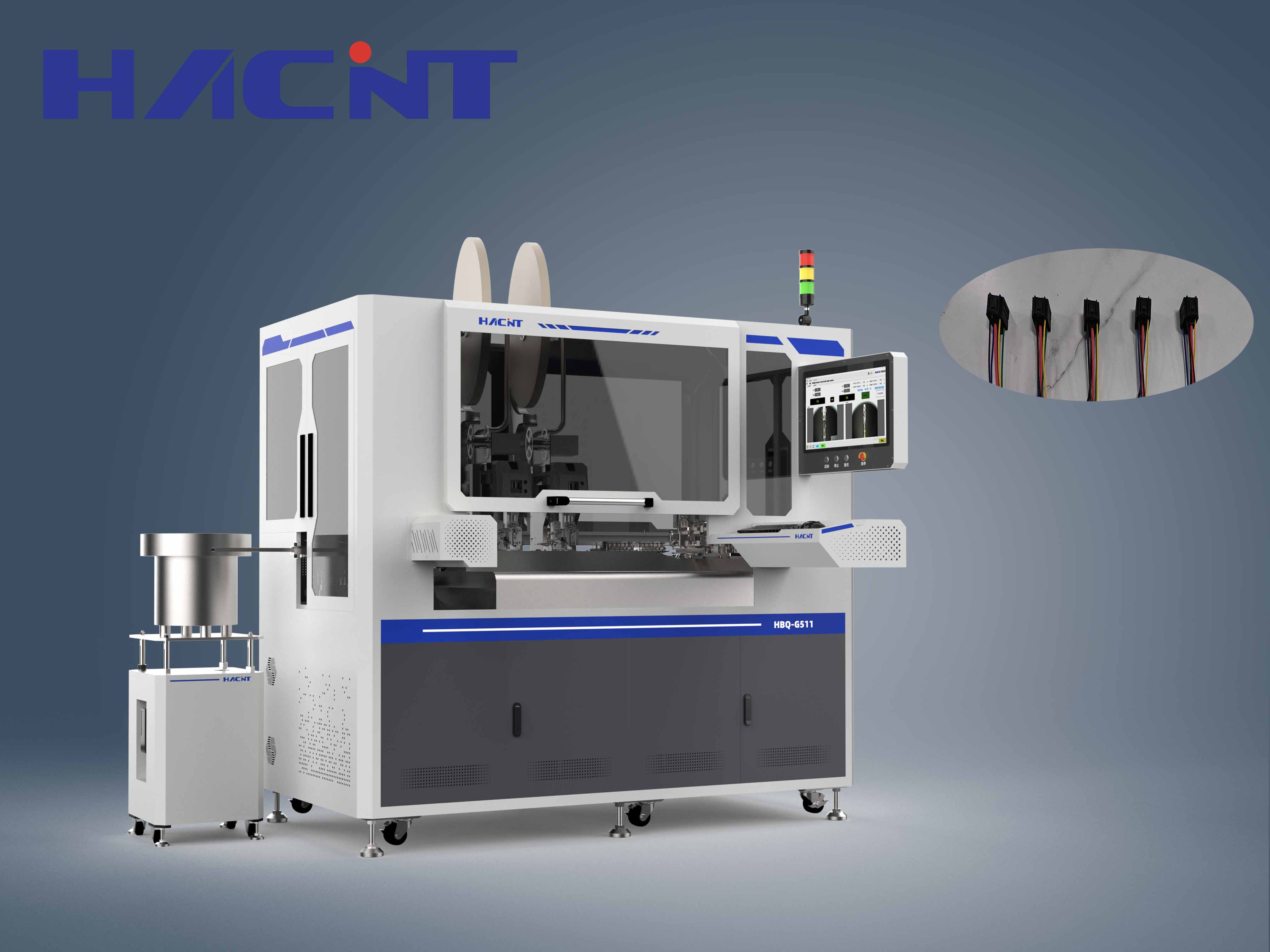

  HBQ-G511 Automatic Single Wire Stranding and Inserting Machine

  HBQ-G511 Fully automatic single wire stranding and inserting machine is a kind of automatic wire harness processing equipment with one end crimping, tail tinning and stranding and inserting the shell, including terminal crimping, tail tinning, terminal CCD appearance detection, terminal insertion force pulling force detection, pin crimping, terminal housing, stranding shell and other functions, suitable for automotive wire harness, home appliance electronic wire. The layout of the whole machine adopts modular design, high efficiency, convenient debugging, modular change, high efficiency, Key components of the whole machine are imported or well-known domestic brands to ensure the reliability of the equipment. HBQ-G511 Fully automatic single wire stranding and inserting machine, the whole machine includes: a set of main machine, a set of pay-off machine, the main machine can process 50mm-600mm long wire, processing 0.04mm²-2mm² wire. 查看详情
  HBQ-G511 Automatic Single Wire Stranding and Inserting Machine
•

  HBQ-G511B Single-head Housing Machine

  HBQ-G511B is an automatic wire harness processing equipment featuring double-ended crimping and single-ended shell insertion. Its functions include crimping, terminal CCD appearance inspection, terminal insertion force and pull-off force inspection, and terminal Shell insertion, etc., suitable for automotive wire harnesses and home appliance electronic wires. The overall layout adopts a modular design, which ensures high efficiency and convenient debugging. It adopts modular changeover, which is efficient in changeover. The key components of the whole machine are imported or from well - known domestic brands to ensure the reliability of the equipment. HBQ-G511B complete machine includes: 1 set of main machine and 1 set of wire laying machine. The main machine can process wires with lengths ranging from 60 to 2000 millimeters and cross-sectional areas ranging from 0.1 to 2.0 square millimeters. 查看详情
  HBQ-G511B Single-head Housing Machine
•

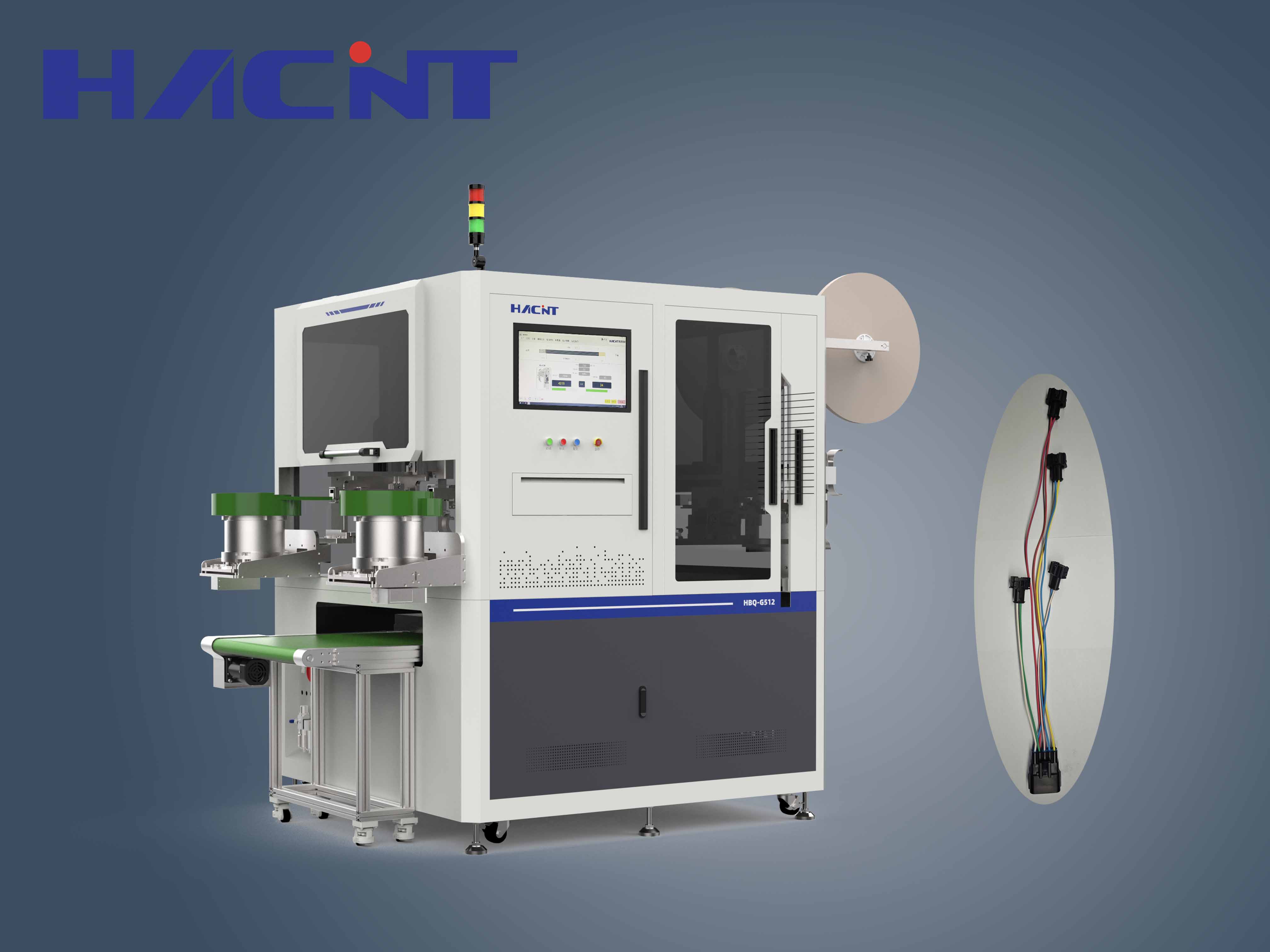

  HBQ-G512 Double-head Housing Machine

  HBQ-G512 automatic double-head housing machine is a wire harness processing equipment featuring automatic double-head crimping and double-head single-wire shell insertion. Functions include crimping, seal loading (optional), pressure management device, terminal CCD appearance inspection (optional), stripping CCD inspection (optional), terminal insertion force and pull - off force inspection, double - ended shell insertion, multi - layer shell insertion, cross - shell insertion, etc. The processed products are applicable to automotive wire harnesses and home appliance electronic wires. The overall layout of the machine adopts a modular design, which is highly efficient and easy to debug. This equipment is equipped with terminal pressure detection, stripping CCD inspection (optional), core wire quantity CCD inspection (optional), terminal CCD appearance inspection, terminal insertion force inspection, terminal pull - off force inspection to prevent defective products from flowing out. Key components are imported or from well - known domestic brands to ensure the reliability of the equipment. The complete machine includes: 1 set of the main machine, 1 set of the wire - feeding machine, a wire - take - up device. The main machine can process wires with a length of 100 - 700 millimeters and a cross - sectional area of 0.04 - 2 square millimeters. The wire - feeding machine can hold a maximum of 400 reels (drums) of incoming materials. 查看详情
  HBQ-G512 Double-head Housing Machine
•

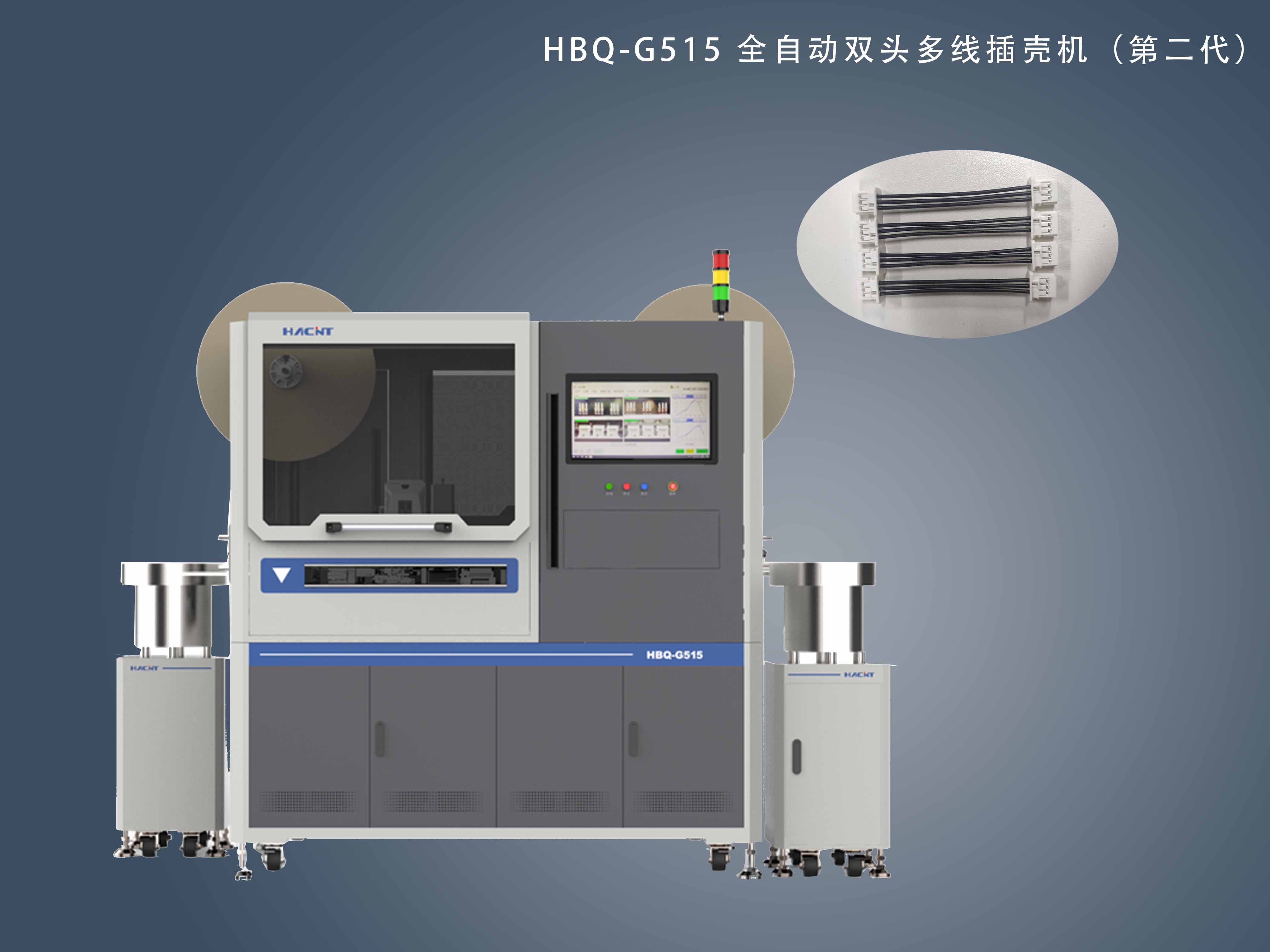

  HBQ-G515 Double-head Housing machine (V2.0)

  HBQ-G515 double-head housing machine (V2.0) is a automatic wire harness processing equipment for double-head multi-wire crimping, shelling, tail tin dipping, or double-head multi-wire crimping and shelling. It is suitable for utilizing automotive wire harnesses, home appliance electronic wires and flat cables, the overall layout adopts a modular design, ensuring high efficiency, convenient debugging, and support for rapid type changeover, which can be completed within 1 hour. The equipment is equipped with terminal pressure inspection, stripping CCD inspection (optional), terminal CCD appearance inspection (optional), terminal in-place CCD inspection (optional), NG cutting fool-proofing to prevent defective products from flowing out. Key components are imported or sourced from well - known domestic brands to ensure the reliability of the equipment. 查看详情
