Nondestructive Testing

TEST MODULE

产品特点: The test modules are used to test the conductivity, water resistance, secondary locks or snaps, covers and other accessories of the wire harness connectors for missing and in place. Test modules can be classified according to module structure and functio

产品资料:产品视频、说明书、图片

产品概述 产品特性 技术参数 相关产品

The test modules are used to test the conductivity, water resistance, secondary locks or snaps, covers and other accessories of the wire harness connectors for missing and in place.
Test modules can be classified according to module structure and function as follows
Pneumatic module: to detect the presence of conventional connector conduction and accessories, etc.

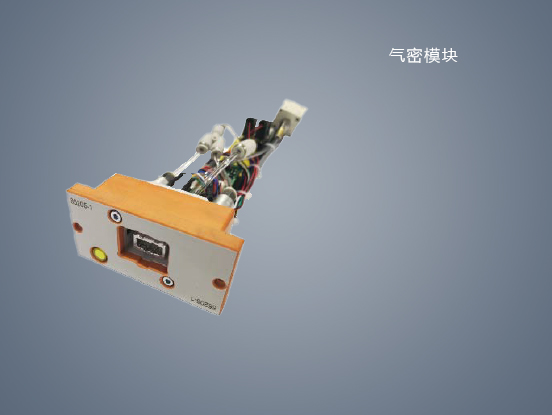

Airtight module: to test the general connector conduction, water resistance and the presence of accessories, etc.

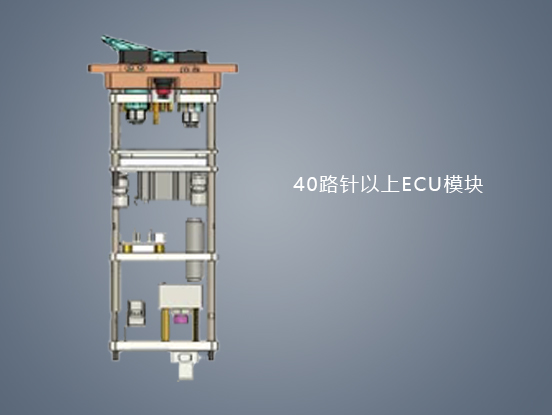

ECU module: to check the function of the ECU connector.
Fuse box module: to test the functionality of the fuse box connector.
ZERO THRUST module: used to detect connectors with more pin holes, push up structure to reduce staff labour intensity.

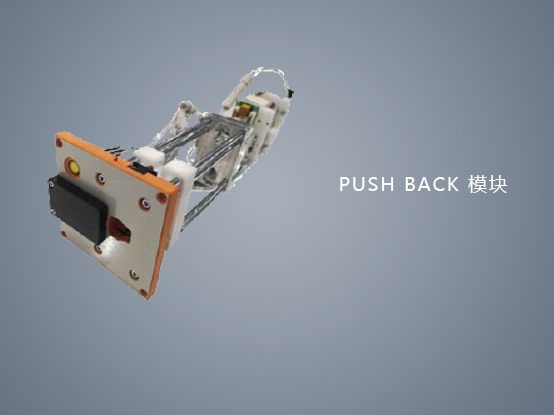

PUSH BACK module: for detecting terminal receding, applicable to male terminal connectors and some special female terminal connectors (hole pitch ≥ 4mm).

The test modules are used to test the conductivity, water resistance, secondary locks or snaps, covers and other accessories of the wire harness connectors for missing and in place.
Test modules can be classified according to module structure and function as follows
Pneumatic module: to detect the presence of conventional connector conduction and accessories, etc.
Airtight module: to test the general connector conduction, water resistance and the presence of accessories, etc.
ECU module: to check the function of the ECU connector.
Fuse box module: to test the functionality of the fuse box connector.
ZERO THRUST module: used to detect connectors with more pin holes, push up structure to reduce staff labour intensity.
PUSH BACK module: for detecting terminal receding, applicable to male terminal connectors and some special female terminal connectors (hole pitch ≥ 4mm).

  • CS TEST TABLE

    CS tester is for testing harness. It's designed to industrial integration standards, and the main control part worked by Win7 system based on industrial computer. So this machine has stable, reliable performance to reduce the failure rate. I/O board utilize Chip electronic components and it's low consumption, small size, light weight and high reliability; with detailed attached files and please work by assembly line mode when edit drawings, it's convenient to operate the machine and worth leading value in the industry. 查看详情
    CS TEST TABLE
  • HCS6000 TEST TABLE

    High voltage tester is designed for the performance test, especially for the performance test of the new energy cable. The test items include low voltage conducting test, air tight test, AC voltage withstand test, DC voltage withstand test and insulation resistance test. 查看详情
    HCS6000 TEST TABLE
  • HCS6000A Wire harness testing system

    This equipment is mainly used for the performance test of high-voltage cables, especially for the performance test of new energy harness. The test items include: low voltage conduction test, air tightness test, AC withstand voltage test, DC withstand voltage test, insulation resistance test, micro resistance test (four wire method), etc. 查看详情
    HCS6000A Wire harness testing system
  • CAS CLIP TESTING TABLE

    CSA is one of testing machine used for the installation and testing of the cable ties. It integrates the installation and testing together, which greatly increase the efficiency. On-line testing of cable ties avoids the mistakes of installations. 查看详情
    CAS CLIP TESTING TABLE
  • CSB VISUAL TEST TABLE FOR ELECTRIC BOX

    查看详情
    CSB VISUAL TEST TABLE FOR ELECTRIC BOX
  • CSB-TXF100 FAKRA wire harness coaxiality visual detection conduction platform

    The CSB-TXF100 series RF line detection equipment adopts a simple mechanism and intelligent control to achieve electrical performance (conduction, short circuit, open circuit, wrong path, insulation, voltage resistance), concentricity (center conductor relative to outer conductor) detection of FAKRA lines. 查看详情
    CSB-TXF100 FAKRA wire harness coaxiality visual detection conduction platform
