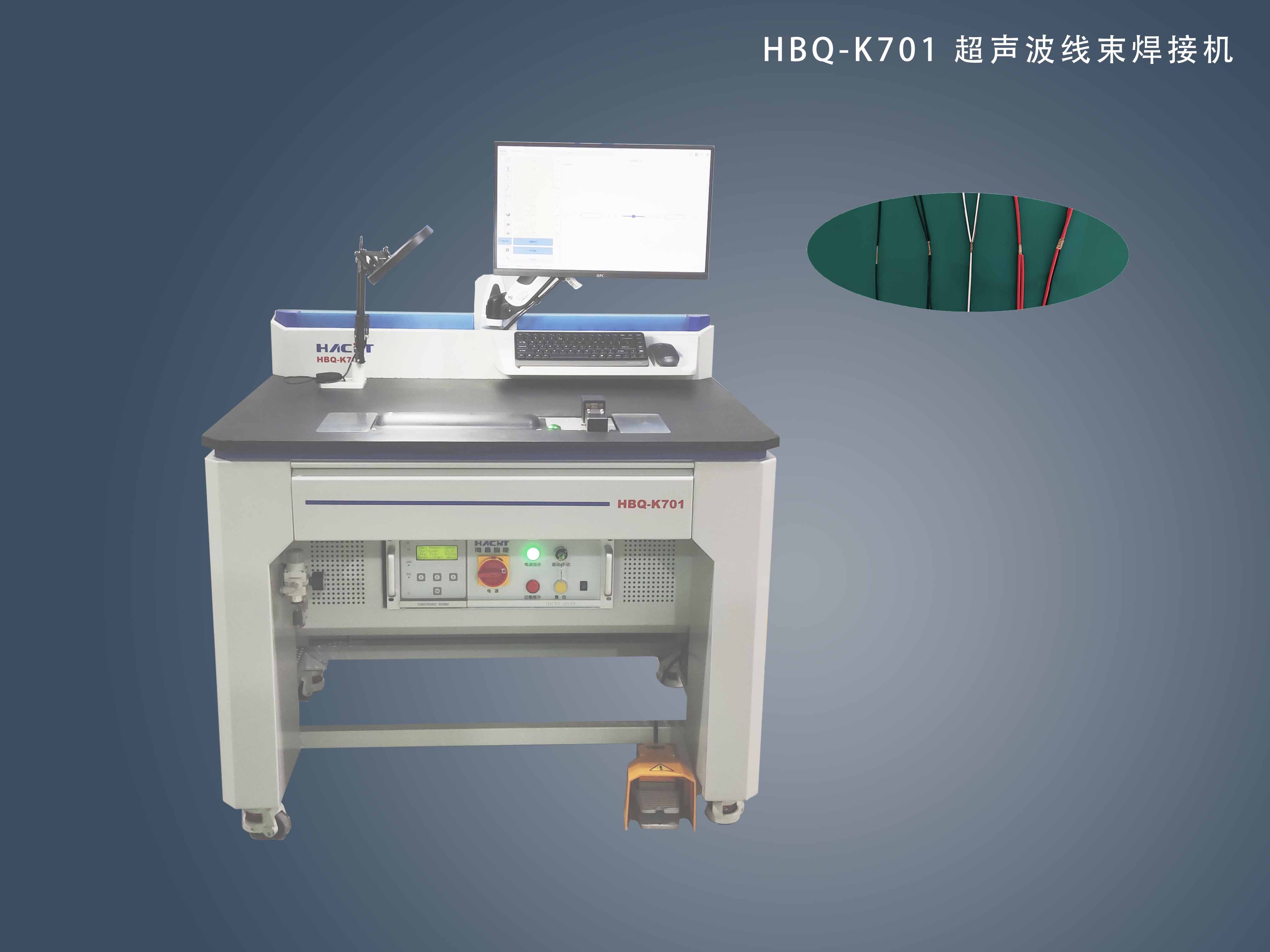

HBQ-K701 Ultrasonic Welding Machine

产品特点： The ultrasonic system is imported, with stable and strong energy output and good sustainability Friendly HMI and intuitive graphics enhance visibility and operability The system has welding parameters for common wires, greatly reducing equipment debugging time The computer monitors the welding process in real-time, and if the parameters exceed the set value, it will alarm to remind you The device can connect network, barcode scanner and MES system Support wire diameter identification to prevent operators from missing or misplacing wiring harnesses Supports online and sequential welding

产品资料：产品视频、说明书、图片

视频

下载

产品概述产品特性技术参数相关产品

The HBQ-K701 Ultrasonic Welding Machine uses ultrasonic wave generating components imported from Germany, equipped with exquisite mechanisms and flexible and intelligent control systems to achieve ultrasonic welding between wire harnesses. It is stable and suitable well for a wide range of wire diameters.

The ultrasonic system is imported, with stable and strong energy output and good sustainability

Friendly HMI and intuitive graphics enhance visibility and operability

The system has welding parameters for common wires, greatly reducing equipment debugging time

The computer monitors the welding process in real-time, and if the parameters exceed the set value, it will alarm to remind you

The device can connect network, barcode scanner and MES system

Support wire diameter identification to prevent operators from missing or misplacing wiring harnesses

Supports online and sequential welding

Type	HBQ-K701（Standard version）
C T	2~4s（Welding）
Wire Diameter Range	0.7～20mm²（Can be Customized to 50mm²）
Air Supply	0.6~0.7MPa
Ambient Temperature	-0.5～50℃
Power Supply	AC 380V 50Hz
Power	2000～6000W
Welding Length	13mm
Overall Dimensions	L1220×W830×H1370mm
Weight	300kg
