Japanese Style Crimping Applicator

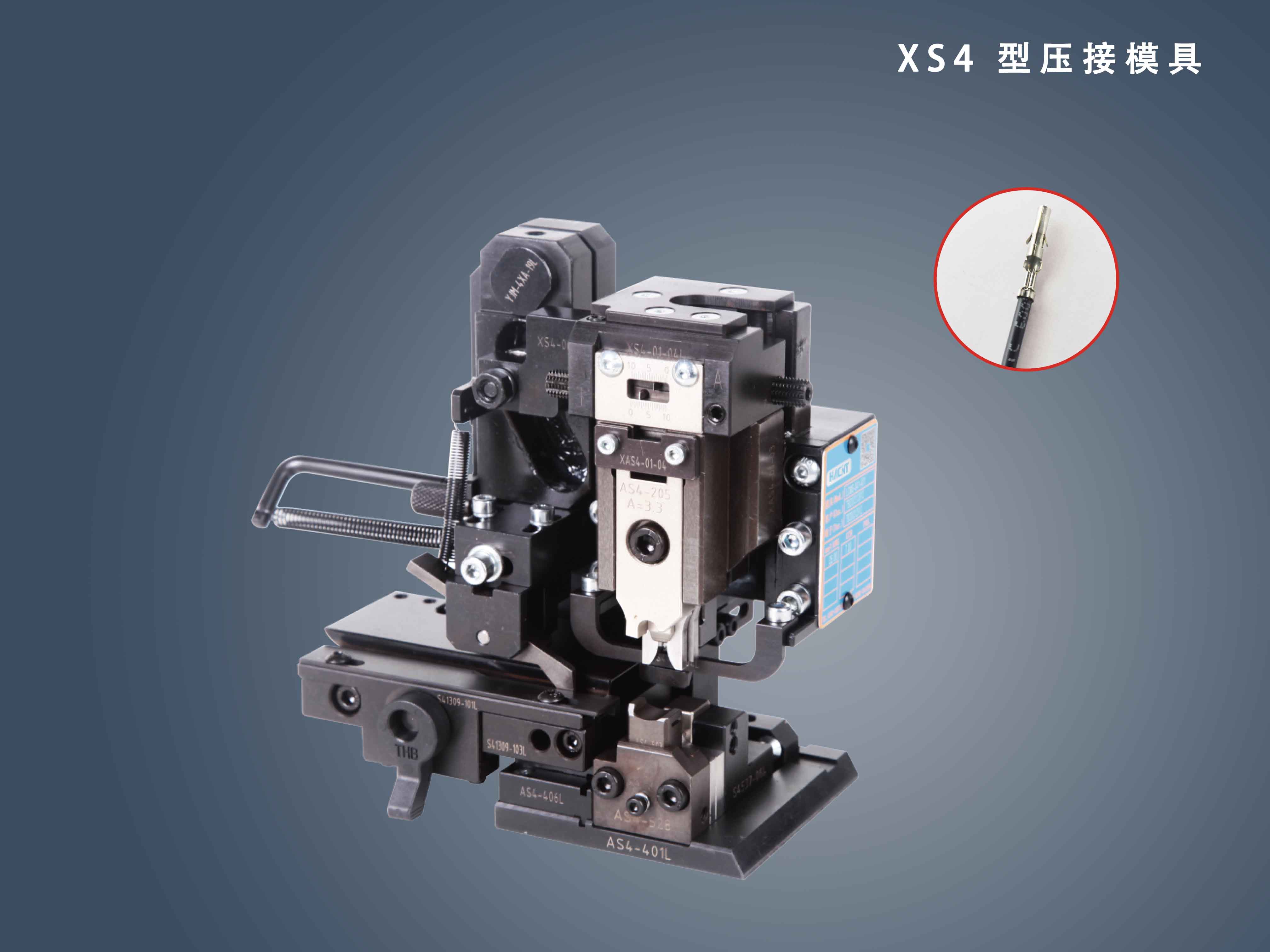

XS4/E4 CRIMPING APPLICATOR
产品特点： ● Adjustment : can be supplied either with a contuous or a wedge regulating head having a 0.02mm resolution for C.H./I.H. and a 2.0mm ran ge. It’s not necessary to adjust the crimping height repeatly; ● Feeding mechanism: can be supplied with the pre feed cam(bench top use) and the post feed cam (automatic use ) for choice; ● Quick change: Perfectly fit with ShinMaywa, JAM, KODERA and HACINT semi-auto crimping machine; ● Technical documentation：you can get a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment. Upon re quest, a capability study& Cross-section Analysis can be provided; ● Strong resistance to rust: QW surface plating; ● Production tracking: Laser labeling for each part-unique ID.
产品资料：产品视频、说明书、图片
● Adjustment : can be supplied either with a contuous or a wedge regulating head having a 0.02mm resolution for C.H./I.H. and a 2.0mm ran
ge. It’s not necessary to adjust the crimping height repeatly;
● Feeding mechanism: can be supplied with the pre feed cam(bench top use) and the post feed cam (automatic use ) for choice;
● Quick change: Perfectly fit with ShinMaywa, JAM, KODERA and HACINT semi-auto crimping machine;
● Technical documentation：you can get a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment. Upon re
quest, a capability study& Cross-section Analysis can be provided;
● Strong resistance to rust: QW surface plating;
● Production tracking: Laser labeling for each part-unique ID.
● Adjustment : can be supplied either with a contuous or a wedge regulating head having a 0.02mm resolution for C.H./I.H. and a 2.0mm ran
ge. It’s not necessary to adjust the crimping height repeatly;
● Feeding mechanism: can be supplied with the pre feed cam(bench top use) and the post feed cam (automatic use ) for choice;
● Quick change: Perfectly fit with ShinMaywa, JAM, KODERA and HACINT semi-auto crimping machine;
● Technical documentation：you can get a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment. Upon re
quest, a capability study& Cross-section Analysis can be provided;
● Strong resistance to rust: QW surface plating;
● Production tracking: Laser labeling for each part-unique ID.
Type：XS4/E4
Stroke：30mm
Feed Type ：Side Feed/End Feed
Shut Height：119.7mm(4.713in)
Weight：5kg
Wire Cross Sections ：0.08～6mm 2 (9~28AWG)
Dimension(mm)：L225×W162XH100mm
Terminal Thickness： 1.2mm（max）
Feeding System：Mechanical
Terminal Pitch：32mm（max）
AS4/AE4A CRIMPING APPLICATOR
● Adjustment : can be supplied either with a contuous or a wedge regulating head having a 0.02mm resolution for C.H./I.H. and a 2.0mm range. It’s not necessary to adjust the crimping applicator height repeatly; ● Modularized framework: Can be adjusted and maintained conveniently; ● Pneumatic feeding mechanism: Terminal pitch 40mm become true easily and feeding speed can be adjusted with facility, can be supplied either with shot stroke cylinder or oriented cylinder for choice, which can enable you to operate the machine freely; ● Reversingvalue structure：Bulid-inreversing value is stableand reliable; ● Quick change: Perfectly fit with ShinMaywa, JAM, KODERA and HACINT semi-auto crimping machine; ● Technical documentation: You can get a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment. Upon request, a capability study & Cross-section Analysis can be provided; ● Strong resistance to rust: QW surface plating; ● Production tracking: Laser labeling for each part-unique ID. 查看详情
XS4/E4 CRIMPING APPLICATOR
● Adjustment : can be supplied either with a contuous or a wedge regulating head having a 0.02mm resolution for C.H./I.H. and a 2.0mm ran ge. It’s not necessary to adjust the crimping height repeatly; ● Feeding mechanism: can be supplied with the pre feed cam(bench top use) and the post feed cam (automatic use ) for choice; ● Quick change: Perfectly fit with ShinMaywa, JAM, KODERA and HACINT semi-auto crimping machine; ● Technical documentation：you can get a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment. Upon re quest, a capability study& Cross-section Analysis can be provided; ● Strong resistance to rust: QW surface plating; ● Production tracking: Laser labeling for each part-unique ID. 查看详情
YJM-4XA/YJM-100 APPLICATOR
With production experience of 20 years , it turns out to be the most economical , durable applicator. 查看详情
NANO CRIMPING APPLICATOR (S4B)
Nano crimping applicator is designed specially for extremely small wire of 0.13mm2 and available for smaller one. This applicator has stable feeding and is easy to adjust and widely used in the light-weight wire harness field. 查看详情
DYM-C CRIMPING APPLICATOR
With the design experience of 20 years, IDC applicator is known as the economy, durability and high quality. IDC(Insulation Displacement Connector) Crimping Applicator is to place the wire above the blade, crimp the wire into blades, and pierce the insulation to conduct. 查看详情
FTCA FLAG TERMINAL CRIMPING APPLICATOR
● Fusion of global advanced technology, you create the best solution for the flag terminal crimping. ● CH / IH precisely adjustable, adjustment range, and do not have to frequently adjust the shut height of crimpi ng machine. ● Mechanical, pneumat 查看详情
