Fully Automatic Crimping Machine

当前位置：产品中心 > 产品列表

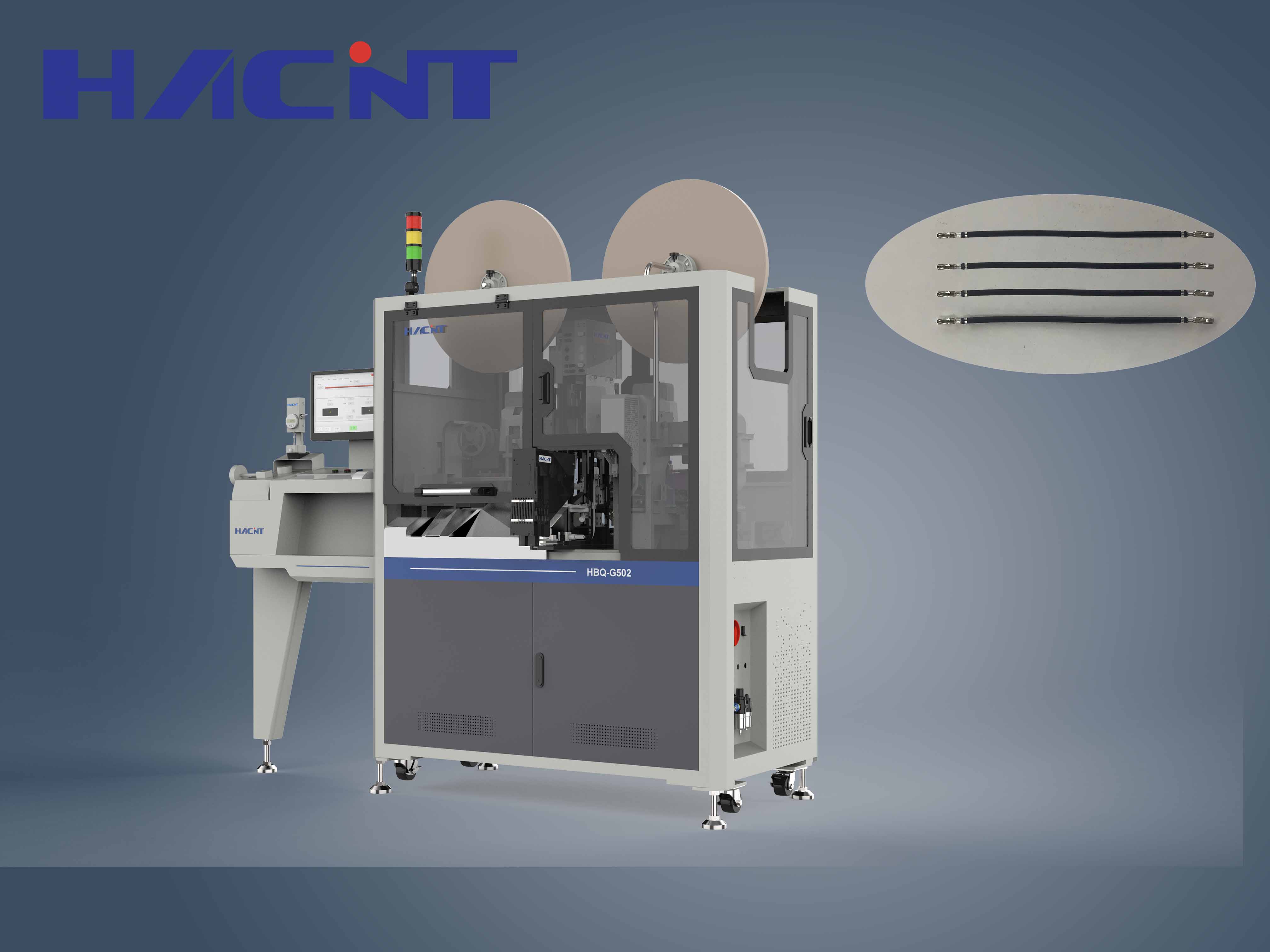

HBQ-G502 Automatic Crimping Machine
HBQ-G502 automatic crimping machine (second generation) is a wire harness processing equipment for fully automatic double-head crimping of terminals. Its functions include crimping, mid-stripping function (optional), and seal loading (optional), terminal CCD appearance inspection (optional), housing loading (optional), and stripping function (optional), etc. The overall layout adopts a modular design, ensuring high efficiency,it is easy to debug. This equipment is equipped with terminal pressure detection and terminal CCD appearance detection (optional), preventing defective products from being released. The key components of the entire machine are sourced from imported or well-known domestic brands to ensure the reliability of the equipment. HBQ-G502 automatic crimping machine, complete set includes: 1 set of main machine, 1 set of wire feeder, and wire retractor (customized according to customer’s needs). The main machine can process wires with a length ranging from 35 to 9999 millimeters and cross-sectional areas ranging from 0.1~2 square millimeters, the fastest efficiency of the main machine can reach 3400~3600pcs/h (only double-head crimping, without enabling the middle stripper), and the wire feeder can feed up to 400 coils of wire(Roller) with pre-feeding wire function to prevent the situation where the lengths of wires are inconsistent, and optional tension meter and digital micrometer. 查看详情
HBQ-G502 Automatic Crimping Machine
HBQ-G502C Automatic Stripping Double Head Crimping Machine
The HBQ-G502C fully automatic double-headed rotating stripping and crimping machine is a harness processing equipment for fully automatic double-head terminal crimping . Its functions include terminal crimping, terminal CCD appearance inspection (optional), rotating stripping function (optional), etc. The whole machine adopts a modular design, featuring high efficiency and convenient debugging. The equipment is equipped with terminal pressure detection and terminal CCD appearance inspection (optional) to prevent the outflow of defective products. The key components of the machine are imported or sourced from well-known domestic brands to ensure the reliability of the equipment. HBQ-G502C Fully Automatic Dual-End Rotary Stripping and Crimping Machine. The complete set includes: 1 host machine, 1 wire feeder, and a wire collector (customized to customer-specified length). The host machine can process wires with lengths ranging from 40mm to 9999mm and insulation outer diameters of 1~5mm. The maximum efficiency of the host machine reaches 3,000~3,200pcs/H (dual-end crimping only, without rotary stripping). The wire feeder is is customized according to the spool specifications and is equipped with a pre-feeding function to prevent wires from being of different lengths. Optional accessories include a tension meter and a digital display micrometer. 查看详情
HBQ-G502C Automatic Stripping Double Head Crimping Machine
HBQ-G506 Automatic Double-ended and Double-wire Crimping Splicing Machine
HBQ-G506 automatic double-ended and double-wire crimping splicing machine is a wire harness processing equipment for automatic double-wire crimping. Its functions include double-head crimping, seal loading(optional), management device, terminal CCD appearance inspection (optional), double-wire crimping, etc., suitable for automotive wire harnesses and home appliance electronic wires. The overall layout adopts a modular design, ensuring high efficiency and it is easy to debug, it adopts modularized changeover, ensuring high changeover efficiency. The key components of the entire machine are sourced from either imported or well-known domestic brands, ensuring the reliability of the equipment. HBQ-G506 automatic double-ended and double-wire crimping splicing machine, complete set includes: 1 set of main machine, 1 set of wire feeder, and wire retractor. The main machine can process wires with lengths ranging from 60 to 600 millimeters and cross-sectional areas ranging from 0.1 to 2 square millimeters. 查看详情
HBQ-G506 Automatic Double-ended and Double-wire Crimping Splicing Machine
FSA-001E Sealing Module
FSA-001E sealing module provides strong support for the automatic wire harness processing system. This equipment perfectly matches HBQ-802/HBQ-804 automatic crimping machines, it is used to install sealing onto the ends of stripped wires, featuring automatic feeding, screening, expanding, and loading functions, suitable for various types of sealing. The precise sealing system ensures processing accuracy, coupled with a compact structure and reliable monitoring, making it the preferred configuration for Hacint's automatic crimping machine. 查看详情
FSA-001E Sealing Module
HBQ-804-03A Wire Prefeeder
HBQ-804-03A wire prefeeder is an active pre-feeder that can smoothly deliver wires to the main machine to ensure the main machine operates efficiently. It can handle wires in various packaging, including bulk, barrel, and hub packaging. This equipment accelerates and decelerates at the same rhythm as the host machine, which can prevent the wires from knotting. 查看详情
HBQ-804-03A Wire Prefeeder
DUAL WIRES FEEDING MODULE
This unit mounts at the inlet side of the wires. The functions of straightening, feeding and switching wires are all in one. The wire could be prepared during the other wire are handling. Just need to click the button to switch to another wire which is preset and begin the production directly. 查看详情
DUAL WIRES FEEDING MODULE
